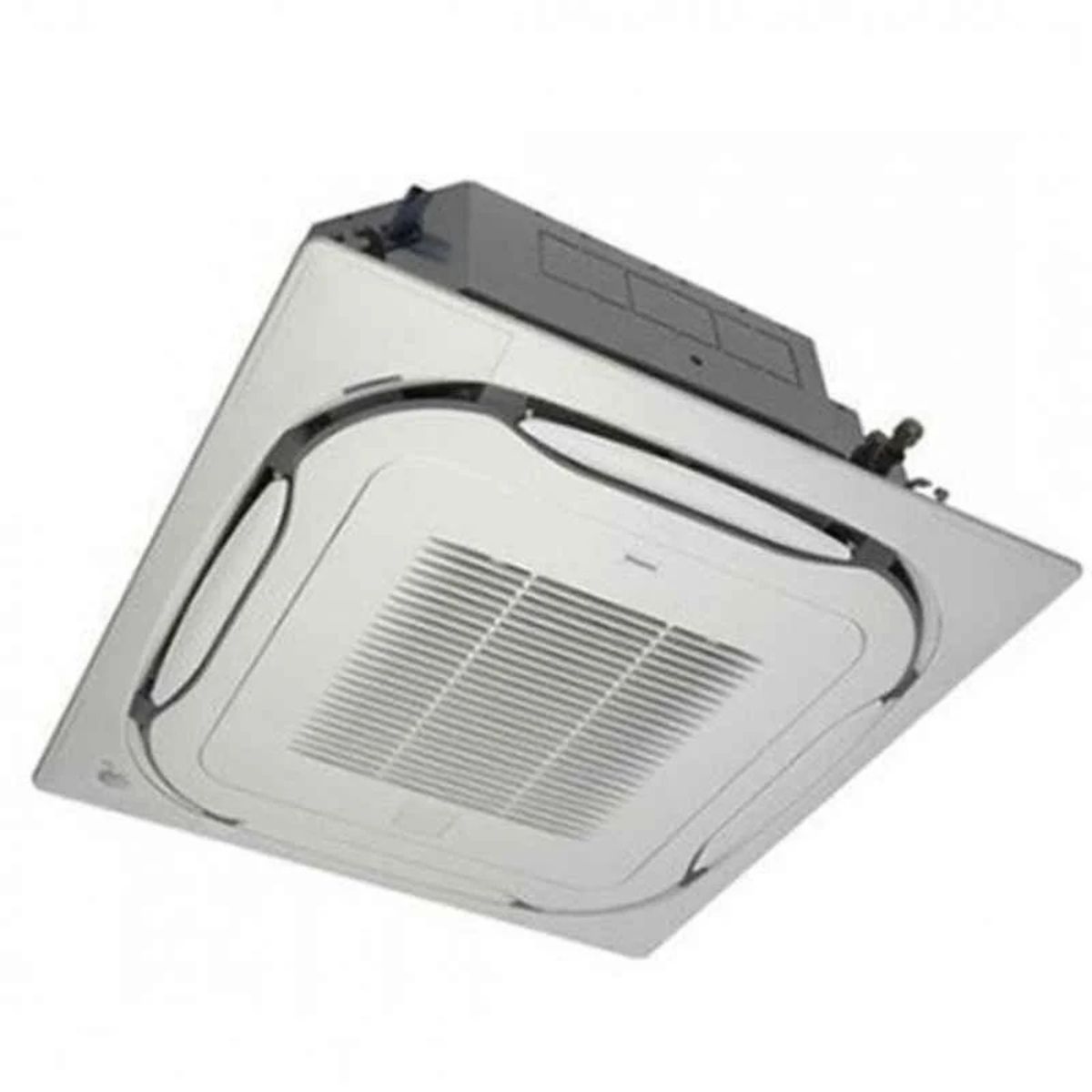

FCW Series Ceiling Mounted Cassette FCU

What is the FCW Series Ceiling Mounted Cassette FCU?

The FCW Series Ceiling Mounted Cassette FCU (Fan Coil Unit) is a chilled water air conditioning system designed to provide uniform cooling, energy efficiency, and quiet operation in commercial spaces. Its compact ceiling-mounted design and 4-way airflow distribution ensure consistent temperature control throughout the room.

How does the FCW Series Cassette FCU work?

The FCW Series Cassette FCU circulates chilled water through a fin-and-tube heat exchanger. Room air passes over the coil, where heat is removed before the conditioned air is distributed evenly through a 4-way airflow system. The BLDC motor ensures efficient air circulation while minimizing power consumption.

What are the key features of the FCW Series Ceiling Mounted Cassette FCU?

4-Way Airflow Distribution

The cassette unit distributes conditioned air in four directions, ensuring uniform cooling throughout the space and eliminating hot spots.

Energy-Efficient BLDC Motor

The advanced BLDC motor delivers high airflow performance while reducing electricity consumption and operating costs.

Built-In Drain Pump

The unit includes a factory-installed drain pump with a float switch, simplifying installation and ensuring reliable condensate removal.

Low Noise Operation

Designed for comfort-sensitive environments, the FCW Series operates quietly, making it suitable for offices, hotels, hospitals, and meeting rooms.

Anti-Mold Air Filter

The integrated air filter helps reduce dust accumulation and inhibits microbial growth, improving indoor air quality.

Wireless Remote Controller

Users can conveniently adjust temperature and operating settings through the supplied wireless controller.

---

Why Choose the FCW Series Ceiling Mounted Cassette FCU?

The FCW Series combines energy-saving technology, compact aesthetics, and uniform air distribution, making it an ideal solution for modern commercial interiors where comfort, efficiency, and appearance are equally important.

Key Benefits

• Uniform room cooling through 4-way airflow
• Lower energy consumption with BLDC motor technology
• Easy installation with built-in drain pump
• Quiet operation for occupant comfort
• Improved indoor air quality with anti-mold filtration
• Suitable for a wide range of commercial applications

---

Technical Specifications

What type of coil is used in the FCW Series Cassette FCU?

The unit features a high-efficiency fin-and-tube heat exchanger designed for chilled water applications.

Coil Specifications

• Heat Exchanger Type: Fin & Tube
• Coil Configuration: 2 Row
• Fin Pitch: 1.2 mm
• Copper Tube Diameter: Ø7 mm
• Maximum Design Pressure: 2.1 MPa

What fan and motor system does the FCW Series use?

The unit is equipped with a turbo fan and an energy-efficient BLDC motor.

Fan & Motor Details

• Turbo Fan Design
• BLDC Motor Technology
• Five Speed Levels:
  • High High (HH)
  • High Medium (HM)
  • Medium (M)
  • Medium Low (ML)
  • Low (L)

What drainage system is included?

The FCW Series includes an integrated condensate management system.

Drain System Details

• Built-in Drain Pump
• Float Switch Included
• Drain Connection Size: VP25 (ID 25 mm × OD 32 mm)

What are the panel specifications?

Decorative Panel

• Dimensions: 950 × 950 × 50 mm
• Finish Color: Fresh White

What are the operating conditions?

Standard Operating Conditions

• Indoor Air Temperature: 27°C DB / 19°C WB
• Chilled Water Temperature: 7°C Supply / 12°C Return

---

Applications of FCW Series Ceiling Mounted Cassette FCU

The FCW Series is suitable for a wide range of commercial and institutional buildings.

Recommended Applications

• Hotels and Hospitality Projects
• Corporate Offices
• Retail Stores and Showrooms
• Hospitals and Healthcare Facilities
• Commercial Complexes
• Educational Institutions
• Conference Rooms
• Shopping Centers

---

Frequently Asked Questions (FAQ)

What is a Ceiling Mounted Cassette FCU?

A Ceiling Mounted Cassette FCU is a fan coil unit installed within a false ceiling that distributes conditioned air in multiple directions using chilled water as the cooling medium.

Is the FCW Series suitable for office buildings?

Yes. The FCW Series is designed for offices, meeting rooms, and commercial spaces requiring quiet and efficient cooling.

Does the FCW Series include a drain pump?

Yes. Every unit is equipped with a built-in drain pump and float switch for simplified condensate management.

What type of motor is used in the FCW Series?

The FCW Series uses an energy-efficient BLDC motor that reduces power consumption while maintaining high airflow performance.

Does the FCW Series provide uniform cooling?

Yes. The 4-way airflow design ensures balanced air distribution throughout the room.

Is the FCW Series suitable for hotels and hospitals?

Yes. Its low-noise operation, energy efficiency, and uniform cooling make it ideal for hotels, hospitals, healthcare facilities, and hospitality projects.
