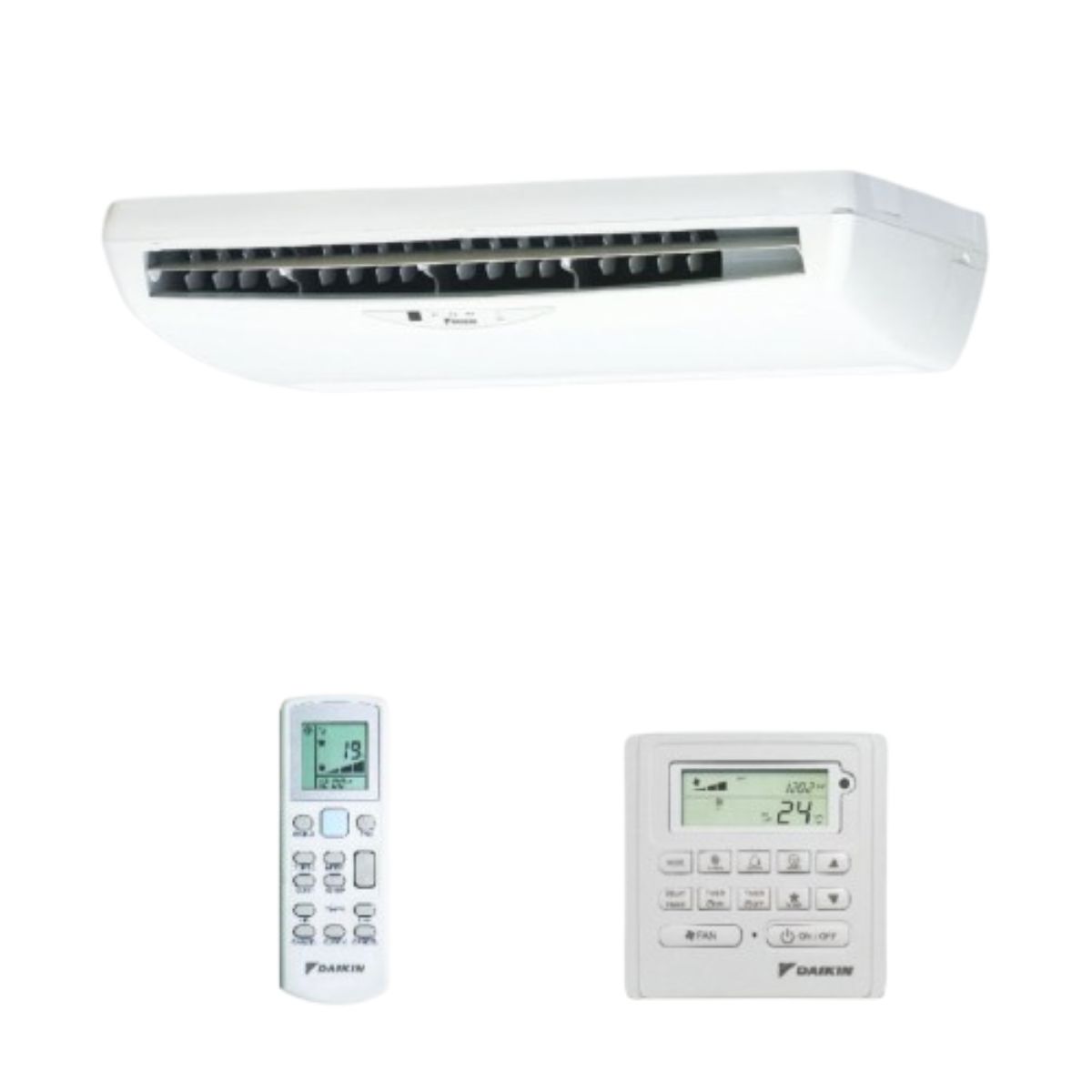

What is a Ceiling Exposed Fan Coil Unit?

A Ceiling Exposed Fan Coil Unit (FCU) is a chilled water air conditioning unit. It is designed for spaces where a concealed ceiling installation is not required.

The unit is mounted directly on the ceiling. It provides effective cooling, easy maintenance access, and reliable airflow for commercial and industrial spaces.

How does a Ceiling Exposed FCU work?

A Ceiling Exposed FCU uses chilled water to cool the air. The chilled water flows through a copper tube and aluminium fin coil.

Warm room air passes over the cooling coil. Heat from the air is transferred to the chilled water. The cooled air is then supplied back into the room through the fan.

This process provides continuous cooling and helps maintain a comfortable indoor temperature.

Why choose a Ceiling Exposed Fan Coil Unit?

Ceiling Exposed FCUs are suitable for buildings where easy installation and maintenance are important.

The unit does not require a false ceiling. This can reduce installation work and make servicing easier.

Key benefits include:

• Easy ceiling installation
• No false ceiling required
• Easy maintenance access
• Lower installation complexity
• Reliable cooling performance
• Suitable for commercial and industrial spaces

---

Key Features of Ceiling Exposed FCU

Exposed Ceiling Installation

The unit is designed for direct ceiling mounting. It is suitable for buildings without suspended or false ceilings.

Benefits include:

• Faster installation
• Easy inspection
• Easy servicing
• Lower installation complexity
• Suitable for industrial environments

Energy-Efficient Operation

The fan motor is designed to provide effective airflow with efficient power consumption.

Key advantages include:

• Lower power consumption
• Reduced operating costs
• Improved system efficiency
• Reliable cooling performance

Easy Maintenance Access

The exposed design provides easy access to the internal components. Technicians can inspect and service the unit without removing a false ceiling.

Maintenance benefits include:

• Faster servicing
• Reduced downtime
• Easier inspections
• Simple access to components

Low Noise Operation

The FCU is designed for smooth and quiet operation. This helps maintain occupant comfort while providing effective cooling.

Reliable Air Distribution

The fan provides consistent airflow across the conditioned space. This helps maintain more uniform room temperatures.

Durable Construction

The Ceiling Exposed FCU is built with durable materials for long-term use. It is suitable for demanding commercial and industrial environments.

---

Technical Specifications

What cooling system does the Ceiling Exposed FCU use?

The Ceiling Exposed FCU is designed for chilled water air conditioning systems.

Performance features include:

• Chilled water cooling
• Medium airflow applications
• Stable cooling performance
• Consistent temperature control

What are the electrical requirements?

The electrical specifications can vary by model. Typical requirements may include:

• Power supply: 220–240V
• Phase: Single phase
• Frequency: 50 Hz
• Energy-efficient fan motor

Always check the specific product datasheet for exact electrical specifications.

What type of coil is used?

The unit uses a copper tube and aluminium fin heat exchanger. This design provides effective heat transfer between the chilled water and room air.

Coil features include:

• Copper tube coil
• Aluminium fins
• Efficient heat transfer
• Reliable cooling performance

What type of fan is used?

The FCU uses a high-performance fan designed to provide reliable airflow.

Fan features include:

• High airflow performance
• Consistent air distribution
• Reliable operation
• Efficient airflow delivery

How is the unit installed?

The FCU is designed for direct ceiling mounting.

Installation features include:

• Ceiling mounted design
• Exposed configuration
• No false ceiling required
• Easy service access

---

Applications of Ceiling Exposed Fan Coil Units

Ceiling Exposed FCUs are used in commercial and industrial spaces where easy installation and maintenance are important.

Commercial Applications

• Office spaces
• Commercial buildings
• Service buildings
• Utility areas

Industrial Applications

• Warehouses
• Manufacturing facilities
• Factories
• Industrial units
• Workshops
• Storage facilities

---

Frequently Asked Questions

What is the purpose of a Ceiling Exposed FCU?

A Ceiling Exposed FCU provides chilled water cooling for commercial and industrial spaces. It is suitable for areas where a concealed installation is not required.

Does a Ceiling Exposed FCU require a false ceiling?

No. The unit is designed for direct ceiling mounting. It can operate without a suspended or false ceiling.

Is a Ceiling Exposed FCU suitable for industrial applications?

Yes. Its exposed design makes maintenance and servicing easier. It is suitable for factories, warehouses, workshops, and other industrial facilities.

What are the advantages of an exposed FCU over a concealed FCU?

The main advantages include easier maintenance, simpler installation, easy service access, and no requirement for a false ceiling.

Does a Ceiling Exposed FCU provide energy-efficient cooling?

The efficiency of an FCU depends on the fan motor, coil design, chilled water temperature, and operating conditions. An efficient fan motor and heat exchanger can help reduce power consumption.

Where are Ceiling Exposed FCUs commonly installed?

They are commonly used in warehouses, factories, workshops, offices, commercial buildings, industrial facilities, and storage areas.
