Oblique Flanged- FM Approved

Name: Oblique Flanged- FM Approved
SKU: 4590
Price: 999.00 INR
Availability: InStock

NewAge Oblique Type Landing Valve, Flanged, FM Approved – ANSI/PN16 flanged inlet, 1.5″-3″, 150 PSI working pressure.

Product successfully added to the Quote List

Category: Fire Brand: NewAge

Description

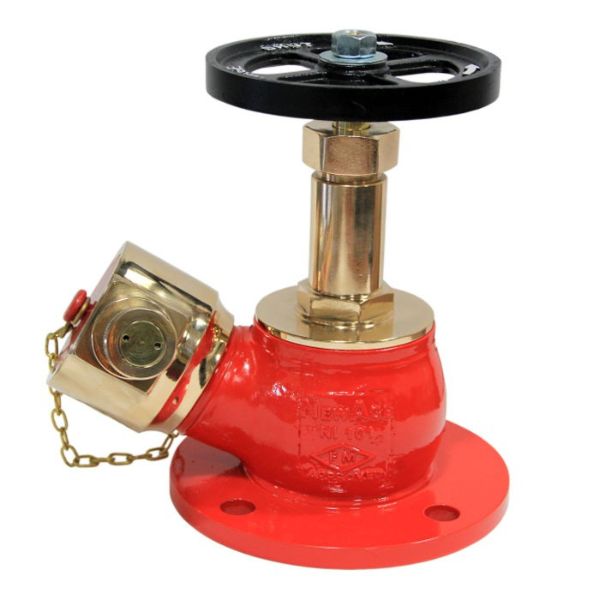

The NewAge Oblique Type Landing Valve – Flanged, FM Approved is a globe-pattern hydrant valve with an angled body design and a Flanged inlet (as per ANSI or PN16) – rather than the threaded inlet used on the Threaded variant. Available in 1.5″ (38mm), 2.5″ (63mm), and 3″ (75mm) sizes, body in Gunmetal, Aluminium alloy, or Stainless Steel with a Cast Iron hand wheel, and Female Instantaneous or male BSP/NH threaded outlet. Rated for 150 PSI (10.5 Kg/cm2) working pressure, 240 PSI (16 Kg/cm2) seat test, and 435 PSI (30 Kg/cm2) body test, governed by BS 5041 Part 1 & IS 5290, and FM Approved – the same certification as the Threaded variant, differing only in inlet connection type. Jaideo Automation supplies NewAge fire protection equipment across India – contact us with your project requirements for a quotation.
