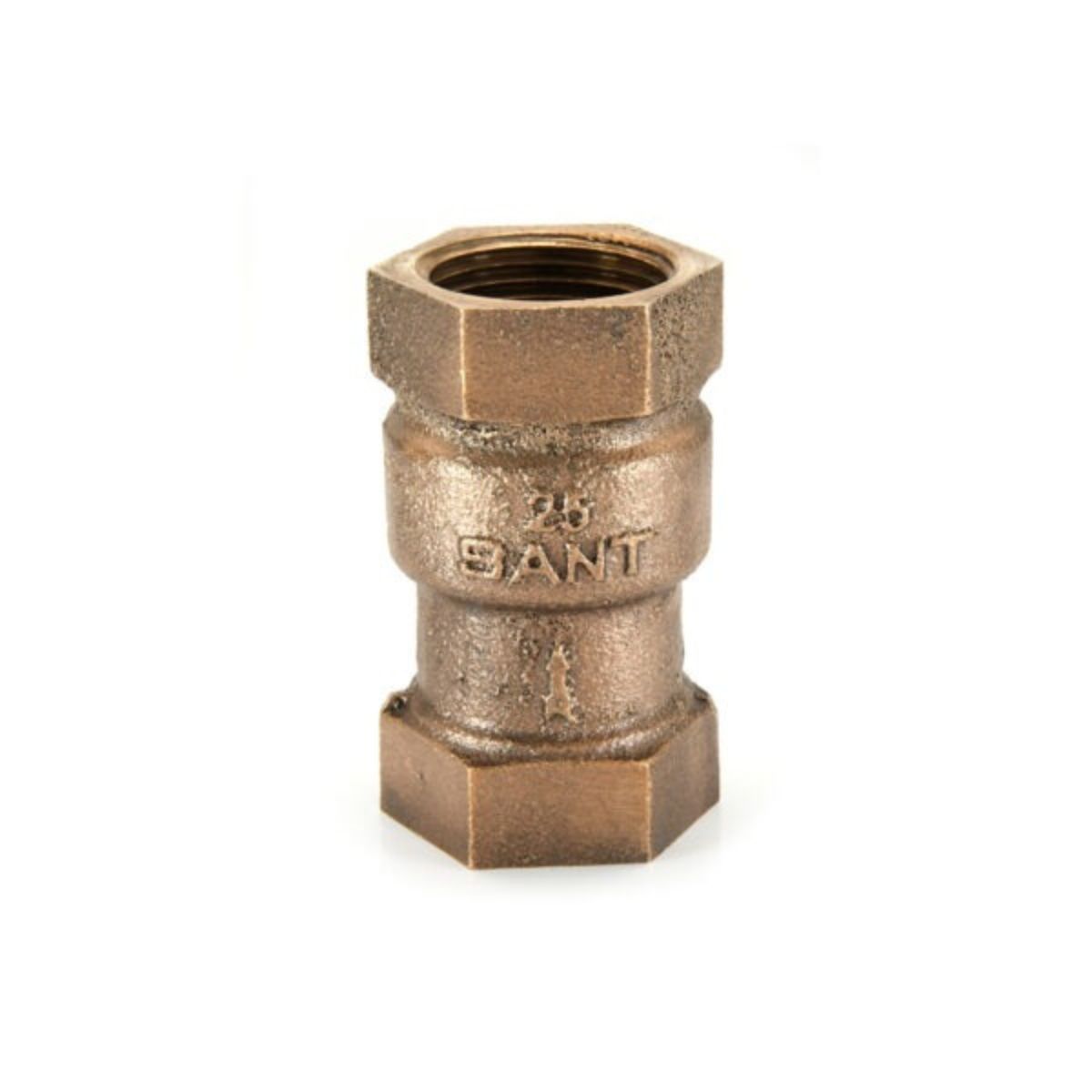

Bronze Vertical Lift Check Valve-IS-8

Name: Bronze Vertical Lift Check Valve-IS-8
SKU: 2170
Price: 999.00 INR
Availability: InStock

Sant IS-8 bronze vertical lift check valve, IS:778 Class-1, ISI marked, DN15-100, screwed.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s IS-8 Bronze Vertical Lift Check Valve is a vertical-installation design to IS-778 Class-1 (ISI marked), in bronze/leaded tin bronze (IS:318 Gr.LTB2) with an integral seat, Cu-alloy trim, phosphor bronze spring for assisted closure, forged brass nut and washer (IS:6912 FLB), and screwed female ends to IS:554 parallel threads – unlike the horizontal-lift IS-14/15 series, this one is built specifically to mount in a vertical pipe run. Body test pressure 1.5 MPa hydraulic, seat test 1.0 MPa hydraulic, max working temperature 45 degC. Available DN15 to DN100 (1/2″ to 4″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
