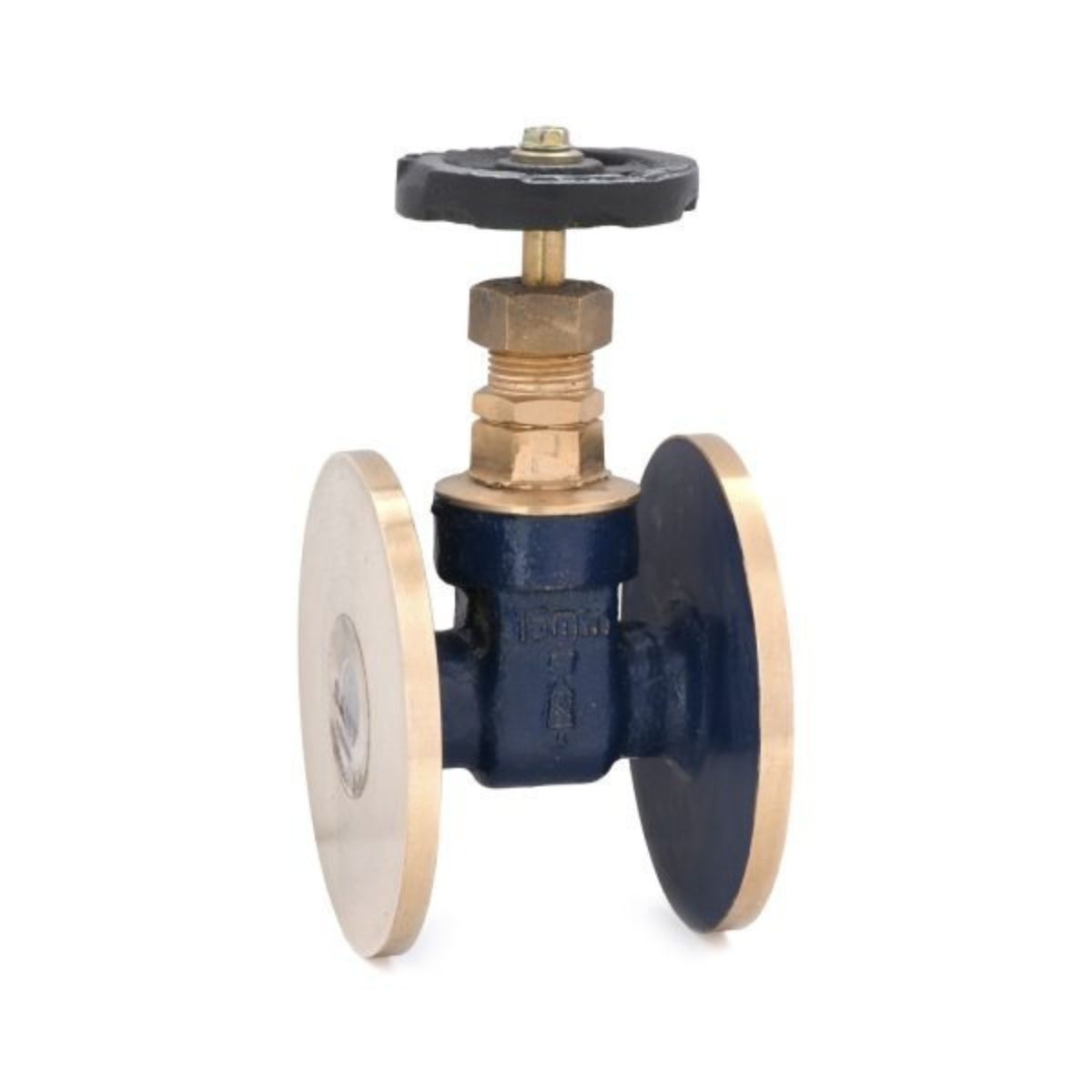

Bronze Gate Valve-IS-2

Name: Bronze Gate Valve-IS-2
SKU: 2053
Price: 999.00 INR
Availability: InStock

Sant IS-2 bronze gate valve, IS:778 Class-1, ISI marked, DN15-100, flanged ends.

Product successfully added to the Quote List

Categories: Gate Valves, Valves Brand: Sant

Description

Sant’s IS-2 Bronze Gate Valve is the flanged counterpart to IS-1 – same IS-778 Class-1 (ISI marked) design, leaded tin bronze (IS:318 Gr.LTB2) body/bonnet/wedge, forged brass stem, non-rising stem, PTFE gland packing – but with undrilled flanges to IS:778 Class-1 F.F. instead of screwed ends. Body test pressure 1.5 MPa, seat test 1.0 MPa hydraulic, max working temperature 45 degC. Available DN15 to DN100 (1/2″ to 4″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
