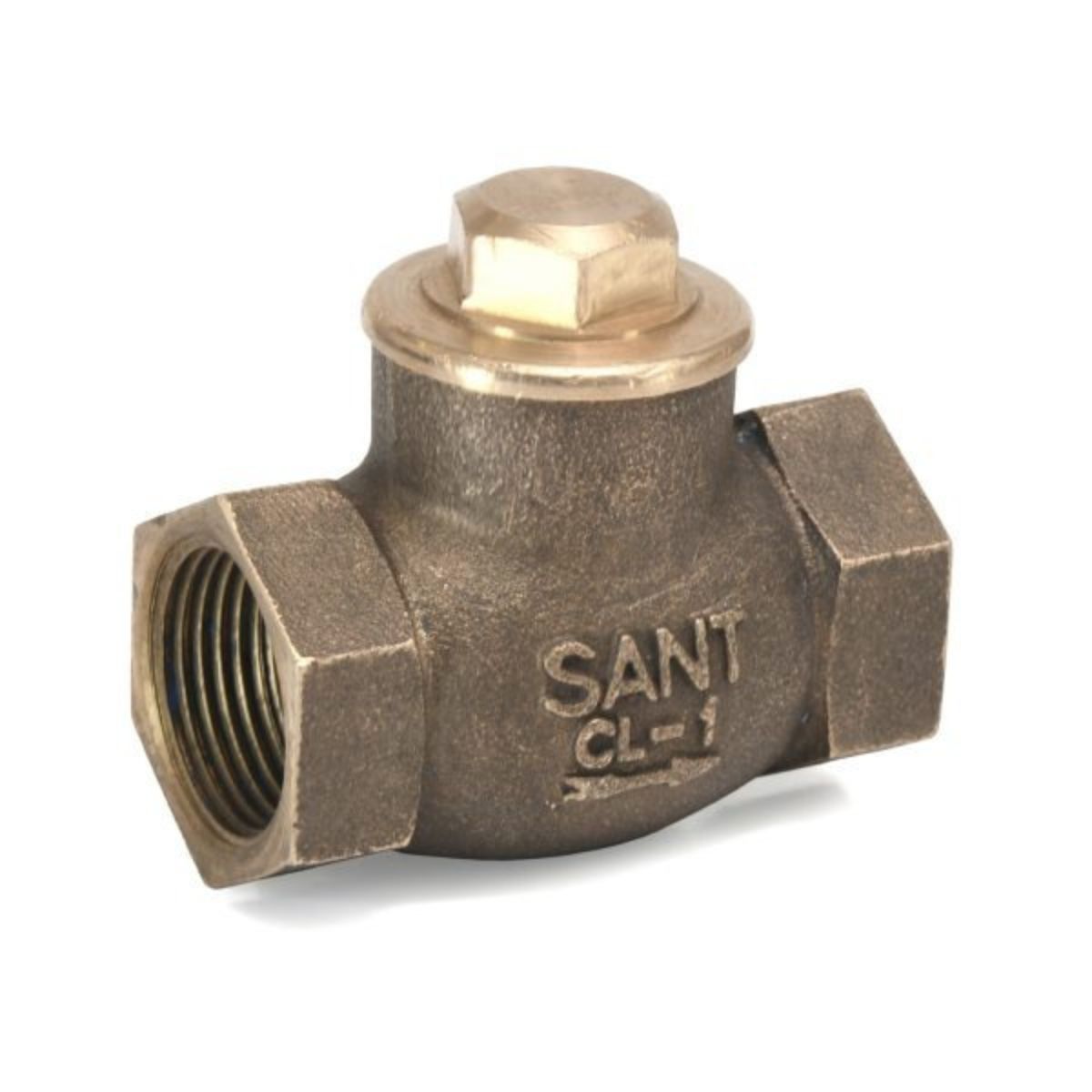

Bronze Horizontal Lift Check Valve-IS-14

Name: Bronze Horizontal Lift Check Valve-IS-14
SKU: 2156
Price: 999.00 INR
Availability: InStock

Sant IS-14 bronze horizontal lift check valve, IS:778 Class-1, ISI marked, DN15-100, screwed.

Product successfully added to the Quote List

Categories: Valves, Check Valve Brand: Sant

Description

Sant’s IS-14 Bronze Horizontal Lift Check Valve is a Class-1 design to IS-778 (ISI marked), for horizontal-run installation with the disc lifting vertically on flow. Screwed-in cover, integral seat, leaded tin bronze (IS:318 Gr.LTB2) body/bonnet/disc, NBR O-ring seal, and screwed female ends to IS:554 parallel threads. Body test pressure 1.5 MPa, seat test 1.0 MPa hydraulic, max working temperature 45 degC. Available across a wide size range, DN15 to DN100 (1/2″ to 4″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
