Cast Iron Globe Steam Stop Valve

Name: Cast Iron Globe Steam Stop Valve
SKU: 1632
Price: 999.00 INR
Availability: InStock

Kartar Cast Iron Globe Steam Stop Valve (K-101) – straight pattern, DIN-2533 PN-16, 13 Kg/cm2 steam, 1/2″-8″.

Product successfully added to the Quote List

Categories: Globe Valves, Valves Brand: Kartar

Description

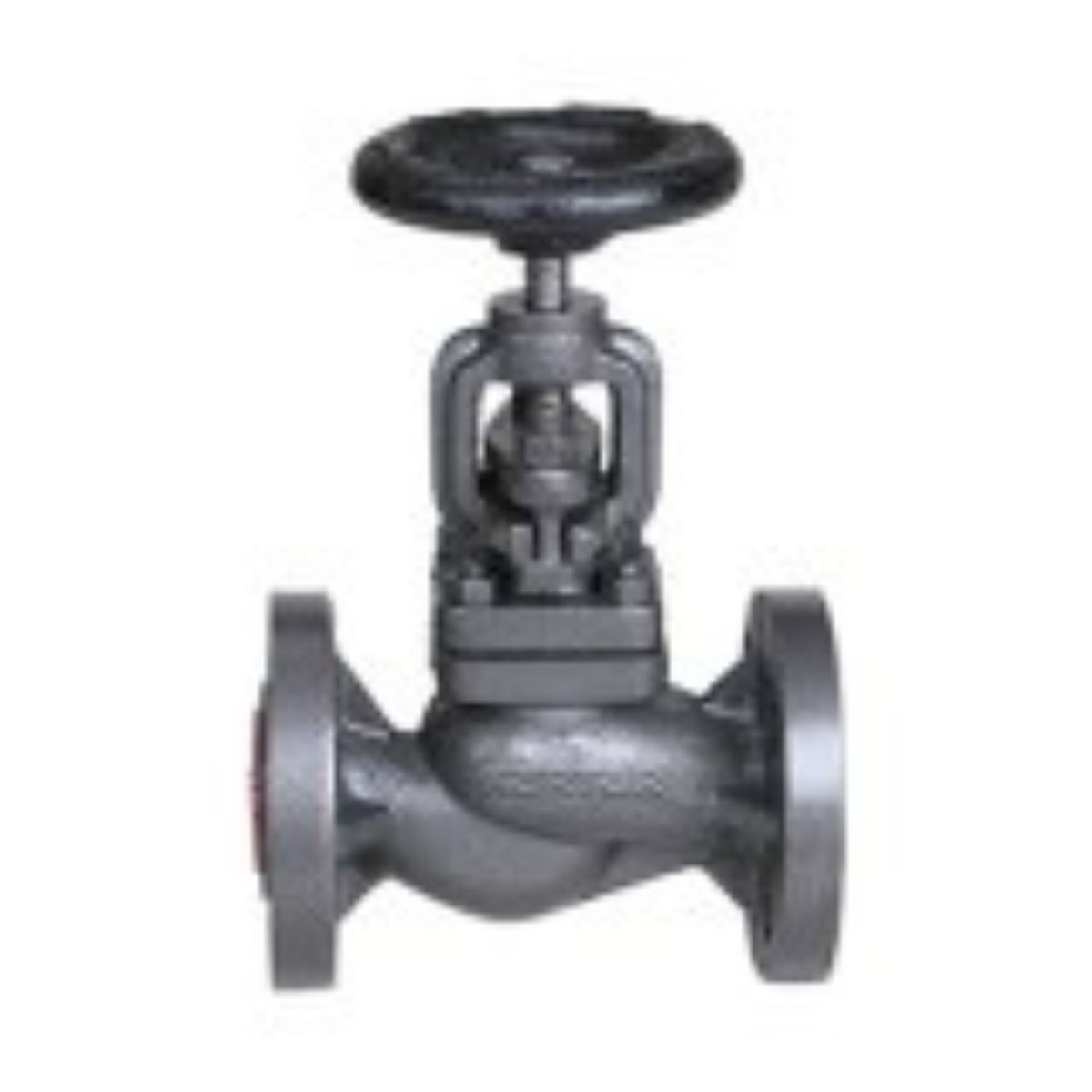

The Kartar Cast Iron Globe Steam Stop Valve (K-101) has a straight-through body pattern, with a renewable Stainless Steel (AISI-410) seat and stem, bolted bonnet, Outside Screw & Yoke type rising stem with back seat, handwheel operated. Flanged ends to DIN-2533 RF (PN-16). Body tested to 370 PSIG (26 Kg/cm2) hydraulic, seat and back seat tested to 230 PSIG (16 Kg/cm2). Suitable for steam up to 13 Kg/cm2, max working temperature 220°C. Available in sizes 1/2″ to 8″ (15mm to 200mm). Unlike the Junction (Right Angle) variant, the Globe type has a straight flow path. Jaideo Automation supplies Kartar valves across India – contact us with your project requirements for a quotation.

Brand

Kartar

Kartar Valves & Firefighting Products

Kartar is an Indian manufacturer of valves, pipe fittings and firefighting products, with a product range covering ball valves, butterfly valves, check valves, gate valves, strainers, air valves and other flow-control solutions. Jaideo Automation supplies Kartar products for HVAC, plumbing, water management, fire protection and industrial applications across India.
