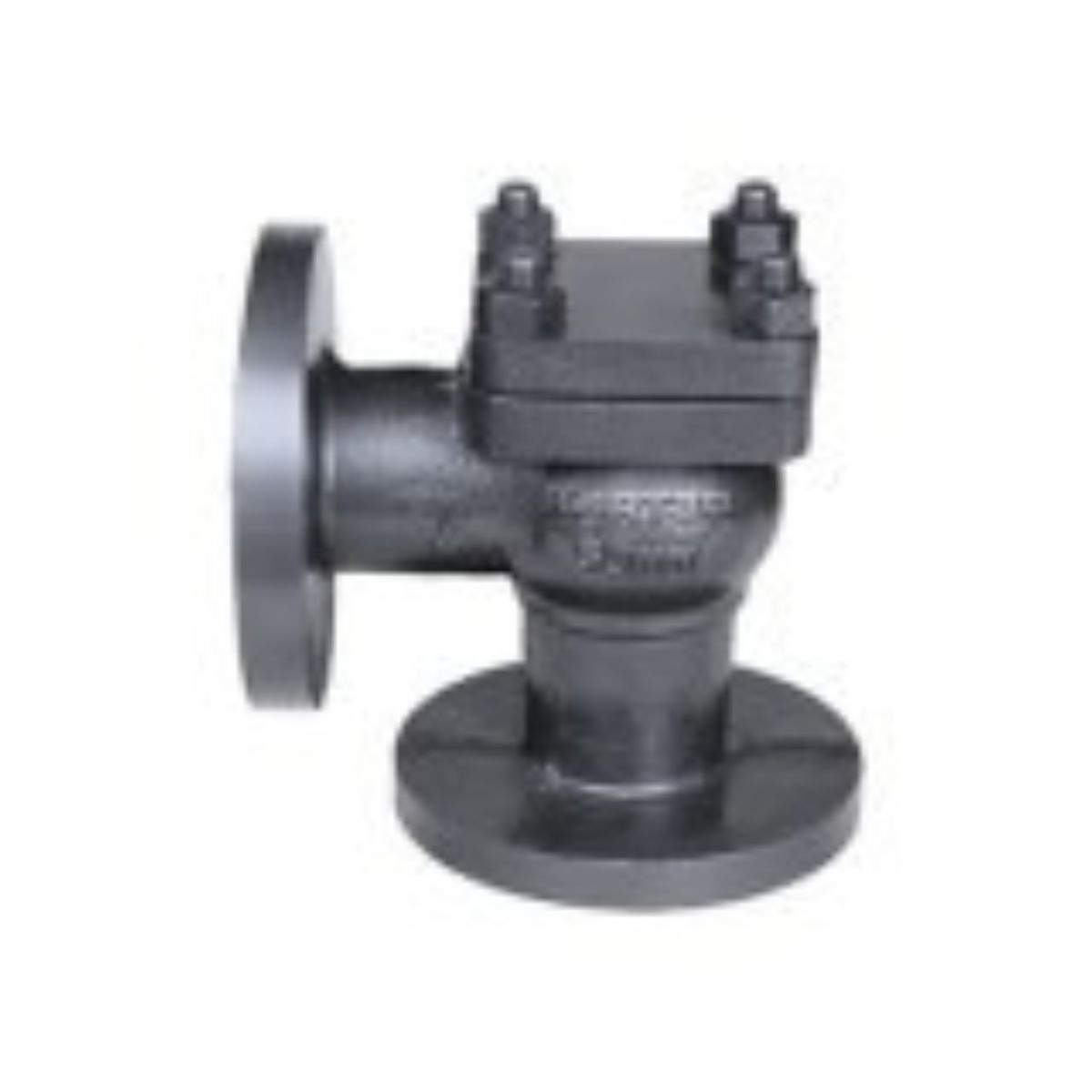

Cast Iron Horizontal Lift Check (non return) valve

Name: Cast Iron Horizontal Lift Check (non return) valve
SKU: 1634
Price: 999.00 INR
Availability: InStock

Kartar Cast Iron Horizontal Lift Check Valve (K-103) – guided disc lift-check, DIN-2533 PN-16, 1/2″-8″, 13 Kg/cm2 steam.

Product successfully added to the Quote List

Categories: Check Valve, Plumbing, Valves Brand: Kartar

Description

The Kartar Cast Iron Horizontal Lift Check (Non Return) Valve (K-103) uses a lift-check mechanism – the disc is precisely guided and lifts off the seat under forward flow pressure, unlike the unguided swinging door in a Single/Dual Plate swing check valve, giving better performance in high-velocity, high-pressure service. Bolted cover with renewable Stainless Steel (AISI-410) seats, flanged ends to DIN-2533 RF (PN-16). Body tested to 370 PSIG (26 Kg/cm2), seat and back seat tested to 230 PSIG (16 Kg/cm2). Suitable for steam up to 13 Kg/cm2, max working temperature 220°C. Available in sizes 1/2″ to 8″ (15mm to 200mm). Jaideo Automation supplies Kartar valves across India – contact us with your project requirements for a quotation.

Brand

Kartar

Kartar Valves & Firefighting Products

Kartar is an Indian manufacturer of valves, pipe fittings and firefighting products, with a product range covering ball valves, butterfly valves, check valves, gate valves, strainers, air valves and other flow-control solutions. Jaideo Automation supplies Kartar products for HVAC, plumbing, water management, fire protection and industrial applications across India.
