ML6161 35 lb-in. and ML6174 70 lb-in. Non-Spring Return Direct Coupled Actuators

Name: ML6161 35 lb-in. and ML6174 70 lb-in. Non-Spring Return Direct Coupled Actuators
SKU: 1994
Price: 999.00 INR
Availability: InStock

Honeywell ML6161 (35 lb-in) / ML6174 (70 lb-in) Non-Spring Return Actuators – floating control, magnetic coupling, UL Recognized.

Product successfully added to the Quote List

Category: Actuators Brand: Honeywell

Description

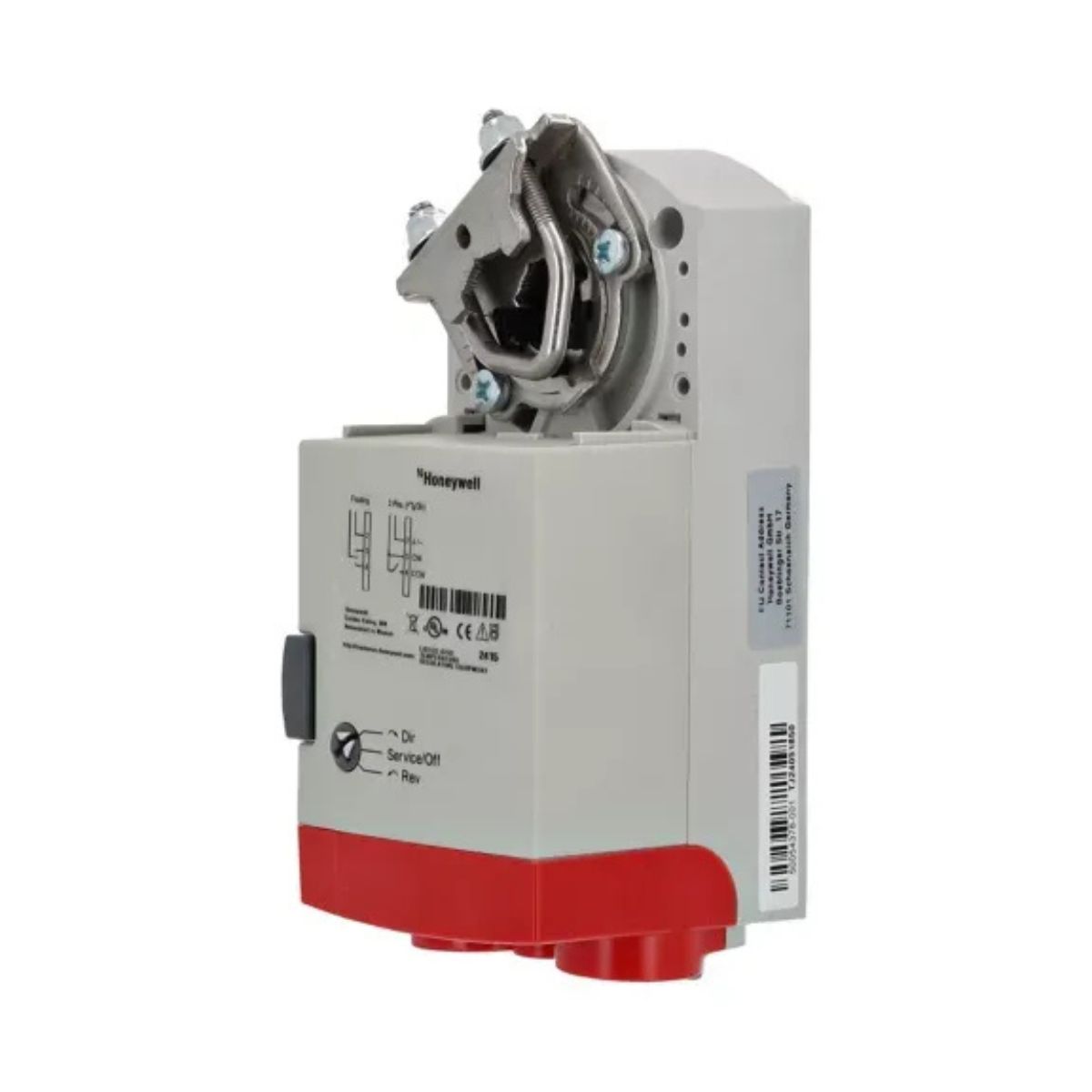

The Honeywell ML6161 (35 lb-in / 4 Nm) and ML6174 (70 lb-in / 8 Nm) Non-Spring Return Direct Coupled Actuators provide floating (SPDT) control for VAV terminal unit dampers or Honeywell ball valves – the ML71xx counterparts instead accept 2-10 VDC (or 4-20 mA with a 500 ohm resistor) modulating control. Selectable 45°, 60°, or 90° stroke in either clockwise or counterclockwise direction, with 0°-30° minimum position adjustment on all models. Magnetic coupling eliminates the need for mechanical stops, manual declutch feature on all models, and two field-addable auxiliary switches (auxiliary feedback potentiometer field-addable on select models). Damper shaft mounting 3/8 to 1/2 in. (10-13mm) square or round, secured with two 1/4 in. Allen screws. Ambient range -18°C to 50°C. UL Component Recognized (File No. E4436). Jaideo Automation supplies Honeywell building automation products across India – contact us with your project requirements for a quotation.

Brand

Honeywell

Honeywell HVAC & Building SolutionsHoneywell offers advanced building automation, HVAC control and building management solutions for commercial and industrial applications. Explore Honeywell products available from Jaideo Automation for HVAC control, building management, energy efficiency and building automation applications.
