Modutrol Actuator with 135 Ohm control

Name: Modutrol Actuator with 135 Ohm control
SKU: 1999
Price: 999.00 INR
Availability: InStock

Honeywell Modutrol Actuator, 135 Ohm Control (Series 90) – proportional control, 90°-160° adjustable stroke, UL Listed.

Product successfully added to the Quote List

Category: Actuators Brand: Honeywell

Description

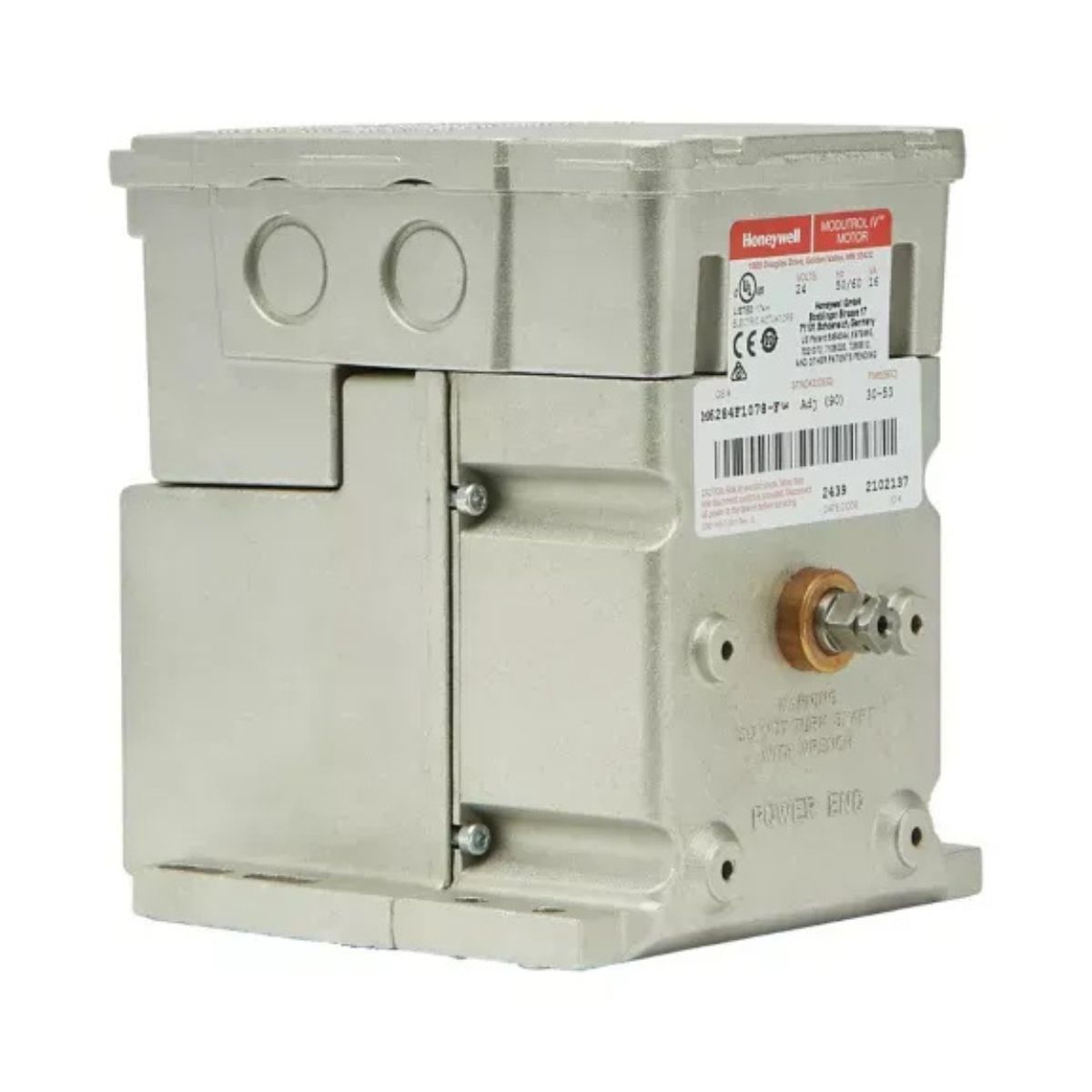

The Honeywell Modutrol Actuator with 135 Ohm Control (Series 90 Modutrol IV Motors) is a spring return or non-spring return modulating proportional control motor, used with controllers providing a Series 90 output – unlike the 3-wire floating Series 61/62, this uses a 135 ohm potentiometer or slide-wire type control signal. Replaces M934A/D, M941, M944A/C/D, M945A/D/F, M954, M965, and M975 motors. Field-adjustable stroke from 90° to 160°, with nominal timing of 30 seconds (90° stroke) or 60 seconds (160° stroke). Integral junction box (NEMA 3 weather protection), 24V AC operation, UL Listed. Up to six Series 90 motors can be controlled in parallel from one 135 ohm pot with an appropriate resistor board. Jaideo Automation supplies Honeywell building automation products across India – contact us with your project requirements for a quotation.
