Modutrol Actuator with Modulating Control

Name: Modutrol Actuator with Modulating Control
SKU: 2000
Price: 999.00 INR
Availability: InStock

Honeywell Modutrol Actuator, Modulating Control (Series 71/72/76) – direct current/voltage signal input, spring/non-spring models.

Product successfully added to the Quote List

Category: Actuators Brand: Honeywell

Description

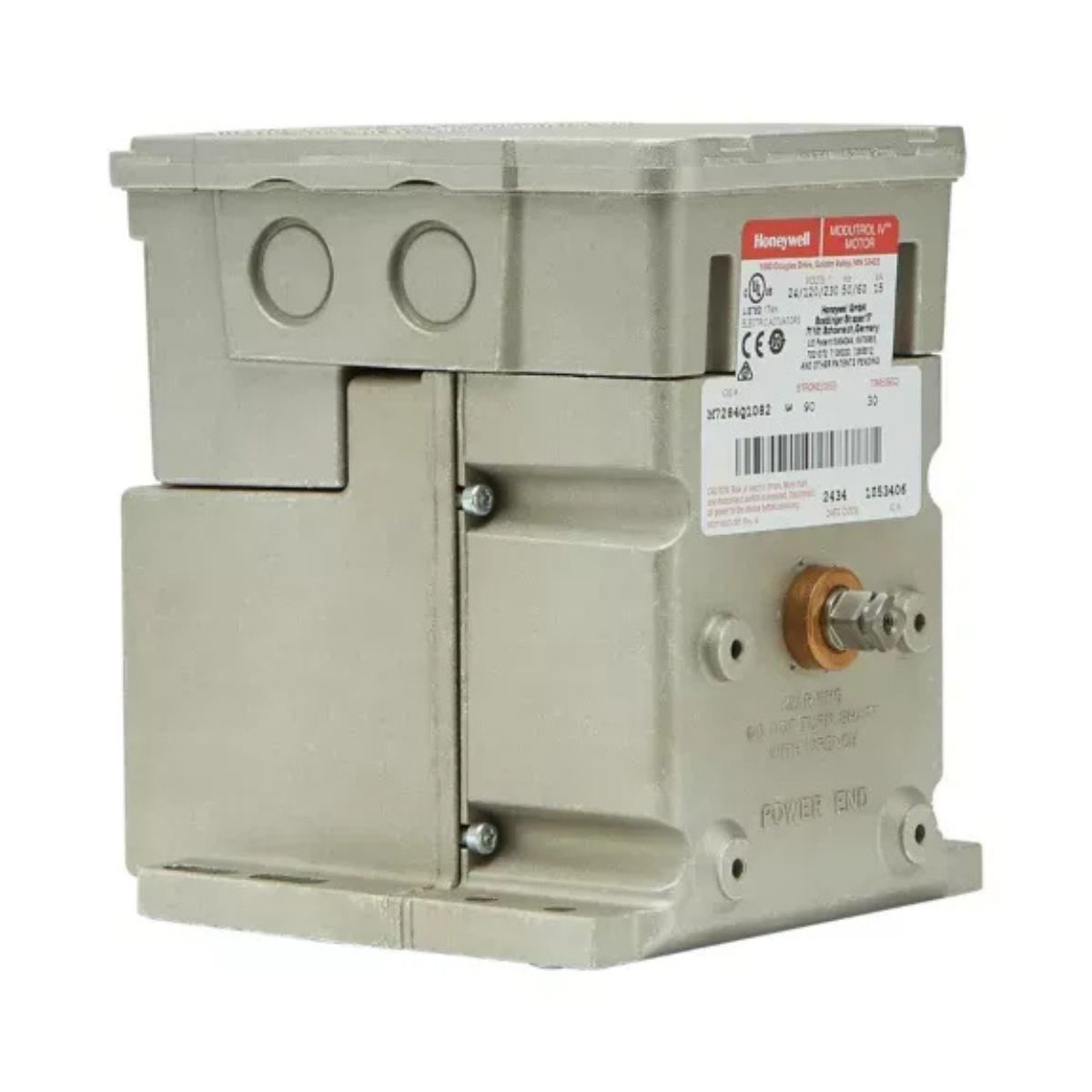

The Honeywell Modutrol Actuator with Modulating Control (Series 71/72/76 Modutrol IV Motors) accepts a current or voltage signal directly from an electronic controller to position a damper or valve – unlike the 135 ohm potentiometer signal used by the Series 90 motors, or the 3-wire floating signal used by Series 61/62. Replaces M734H/J, M744ST/Y, and M745L/S/T/Y motors. M7164, M7261, M7284, and M7294 are non-spring return models; M7282, M7285, M7286, and M7685 are spring return models with integral spring return on power interruption. Integral junction box (NEMA 3 weather protection), 24V AC operation with optional factory or field transformer, quick-connect terminals standard. Jaideo Automation supplies Honeywell building automation products across India – contact us with your project requirements for a quotation.
