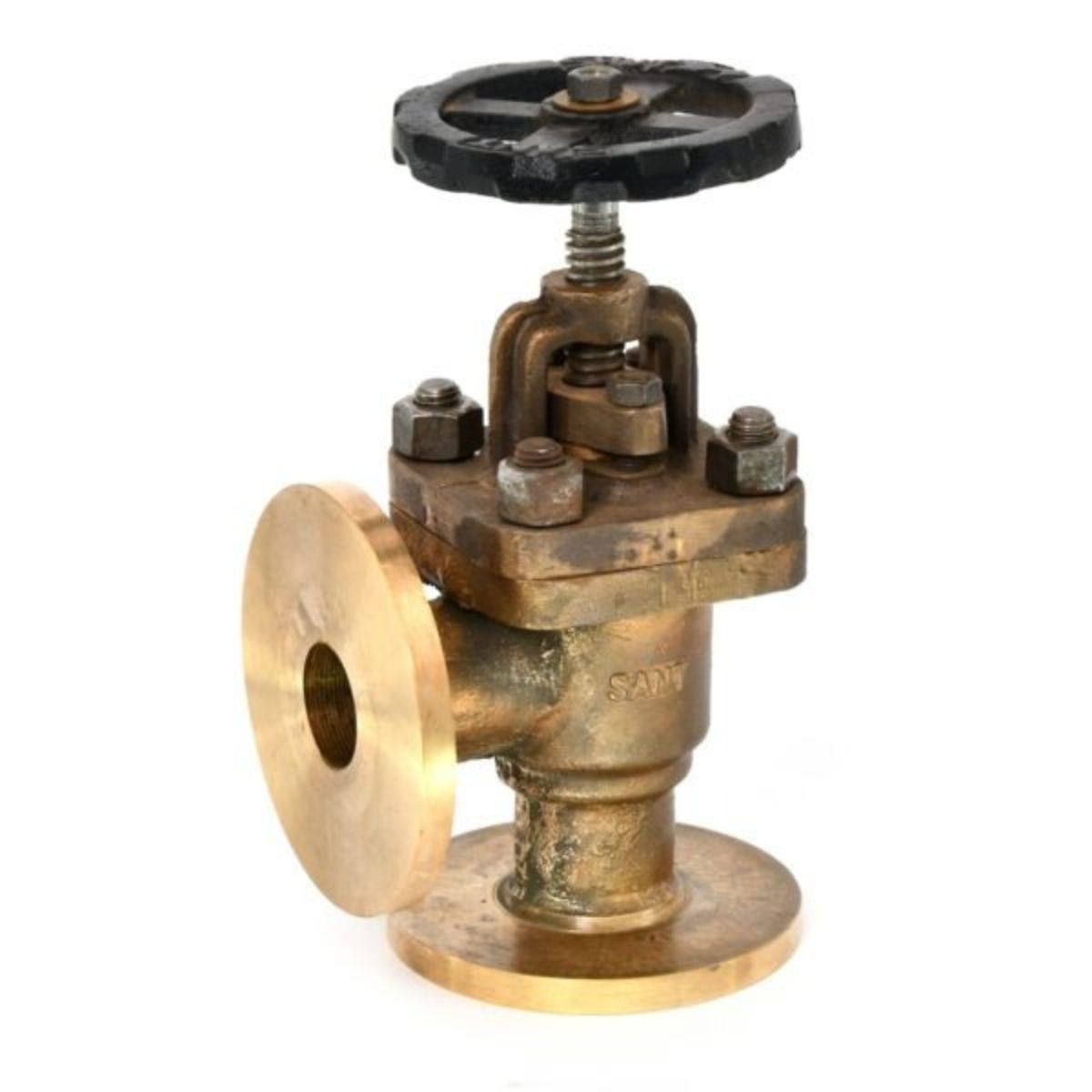

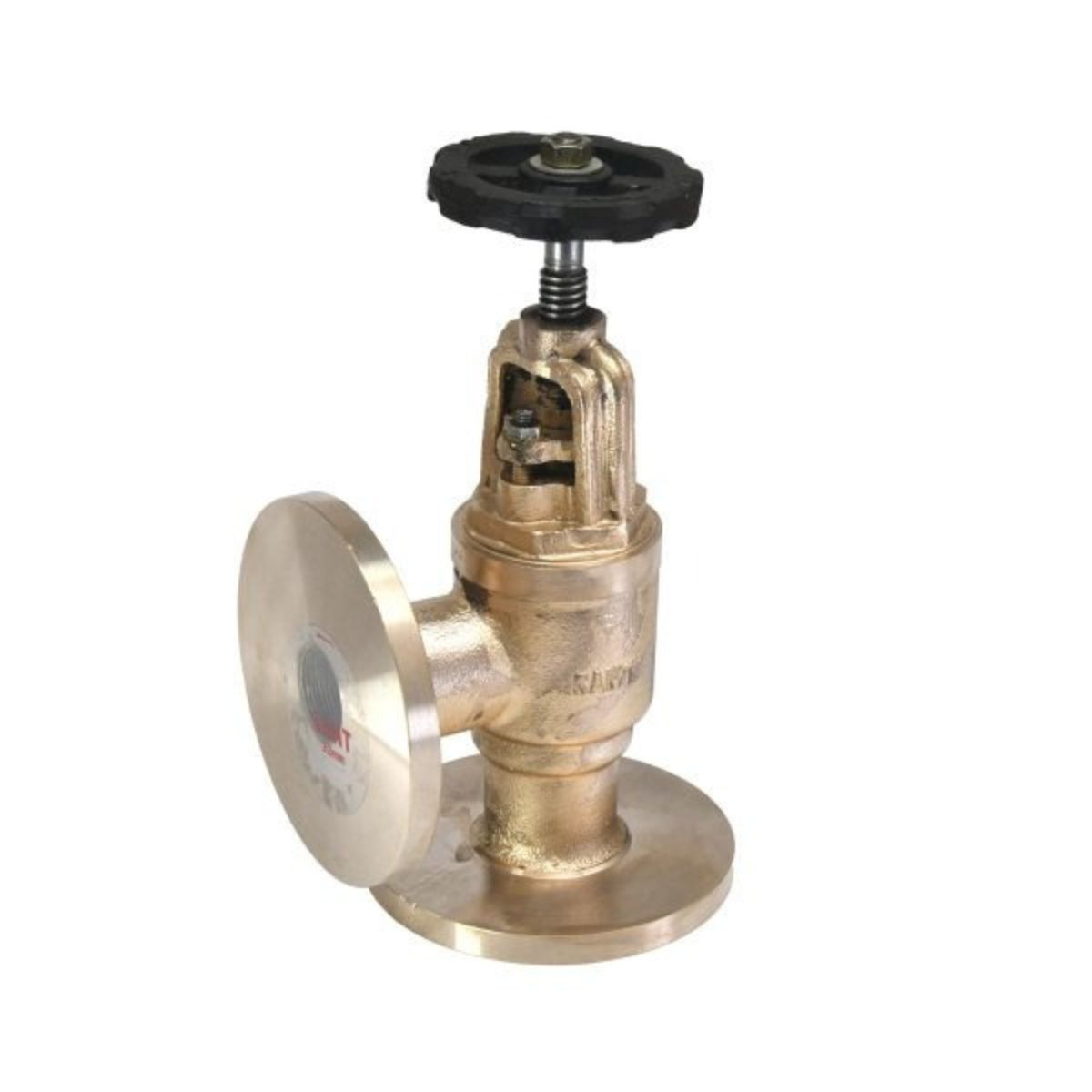

Bronze Controllable Feed Check Valve-IBR-9BR

Name: Bronze Controllable Feed Check Valve-IBR-9BR
SKU: 2144
Price: 999.00 INR
Availability: InStock

Sant IBR-9BR bronze controllable feed check valve, right-angle, flanged, DN15-50, IBR certified.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s IBR-9BR Bronze Controllable Feed Check Valve is a right-angle pattern design in bronze (IBR 282(a)(iv) Gr.B) with a screwed-in bonnet and OS Yoke rising stem for sizes 15-32mm, or a bolted bonnet with OS Yoke rising stem for 40-50mm, renewable seat and disc, AISI-410 stainless steel trim, expanded pure flexible graphite gland packing, and undrilled flanged ends to BS 10 Table H F.F. Body test pressure 500 psig hydraulic, seat test 500 psig hydraulic and 250 psig steam, max working pressure 250 psig (17.58 kg/cm2), rated to 225 degC (435 degF). IBR Form III-C test certificate furnished with every supply. Available DN15 to DN50 (1/2″ to 2″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
