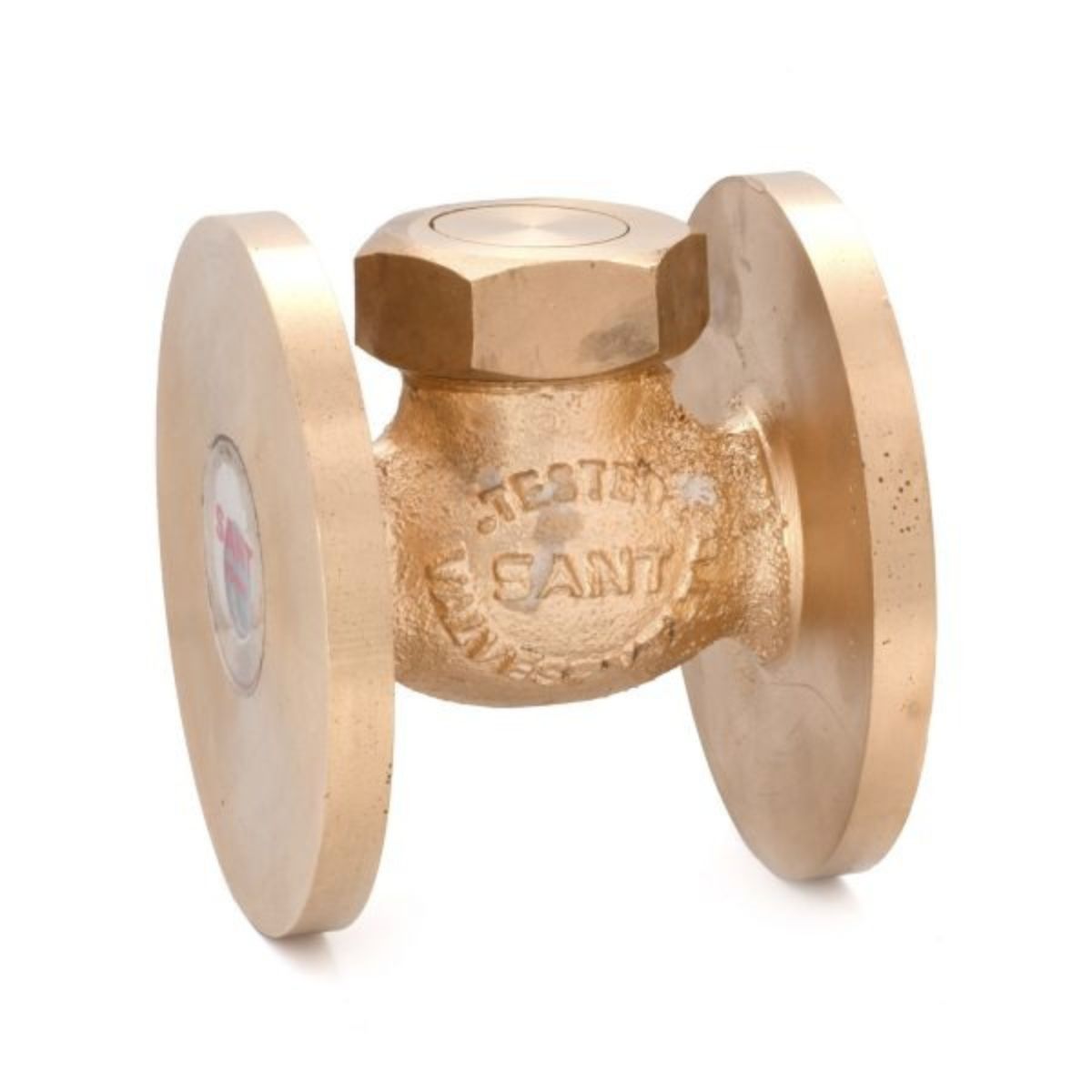

Bronze Union Bonnet Horizontal Lift Check valve-SBM-17

Name: Bronze Union Bonnet Horizontal Lift Check valve-SBM-17
SKU: 2168
Price: 999.00 INR
Availability: InStock

Sant SBM-17 bronze union bonnet horizontal lift check valve, IS:778 Class 2, DN15-100, flanged.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s SBM-17 Bronze Union Bonnet Horizontal Lift Check Valve is the flanged counterpart to SBM-16 – same IS:778 Class 2 union-cover design, leaded tin bronze (IS:318 Gr.LTB2) body/bonnet/union nut, renewable seat and disc in AISI-410 stainless steel, and identical 42 kg/cm2g body test / 25 kg/cm2g seat test hydraulic rating – but with undrilled flanges to BS 10 Table F instead of screwed ends. Works test certificate furnished with every supply. Available DN15 to DN100 (1/2″ to 4″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
