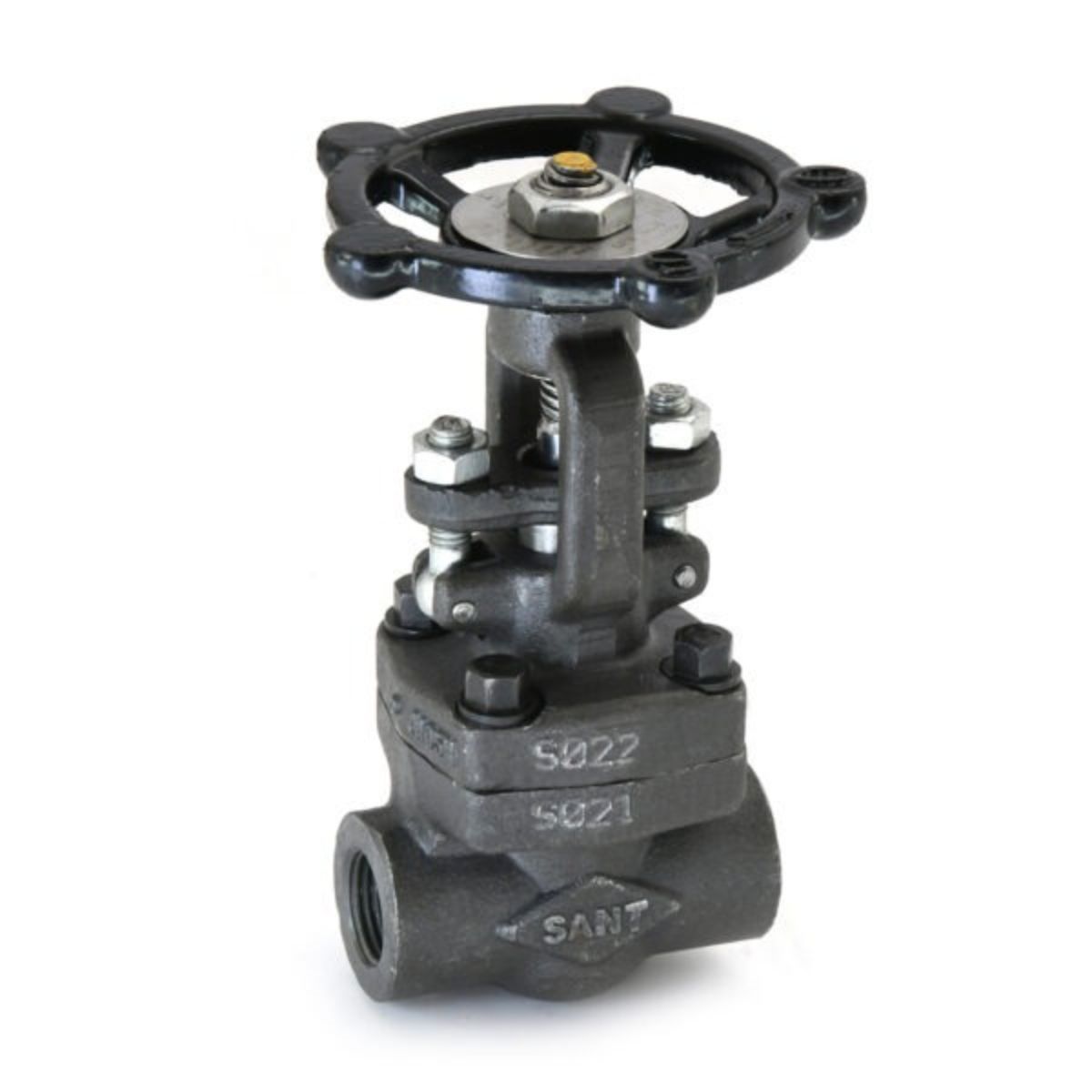

Forged Steel Gate Valve-FSV-1A

Name: Forged Steel Gate Valve-FSV-1A
SKU: 2075
Price: 999.00 INR
Availability: InStock

Sant FSV-1A forged steel gate valve, Class 800, DN10-50, screwed NPT, IBR approved, 207 bar body test.

Product successfully added to the Quote List

Categories: Gate Valves, Valves Brand: Sant

Description

Sant’s FSV-1A Forged Steel Gate Valve is a reduced-bore Class 800 design to BS 5352/API 602, in drop-forged carbon steel (ASTM A105) with bolted bonnet, outside screw and yoke, rising stem, renewable seat and disc, AISI-410 stainless steel trim, and screwed female NPT ends. IBR approved. Body test pressure 207 bar g (3000 psig), seat test 152 bar g (2200 psig) hydraulic plus 6.9 bar g air, rated to 425 degC. Available DN10 to DN50 (3/8″ to 2″) – Sant’s compact, small-bore forged steel option for high-pressure water, oil and steam lines where a full-bore body isn’t needed. Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
