Universal Check Valve – BUCV

Name: Universal Check Valve - BUCV
SKU: 2204
Price: 999.00 INR
Availability: InStock

Sant BUCV forged brass universal check valve, any-orientation mounting, DN15-50, screwed BSP.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

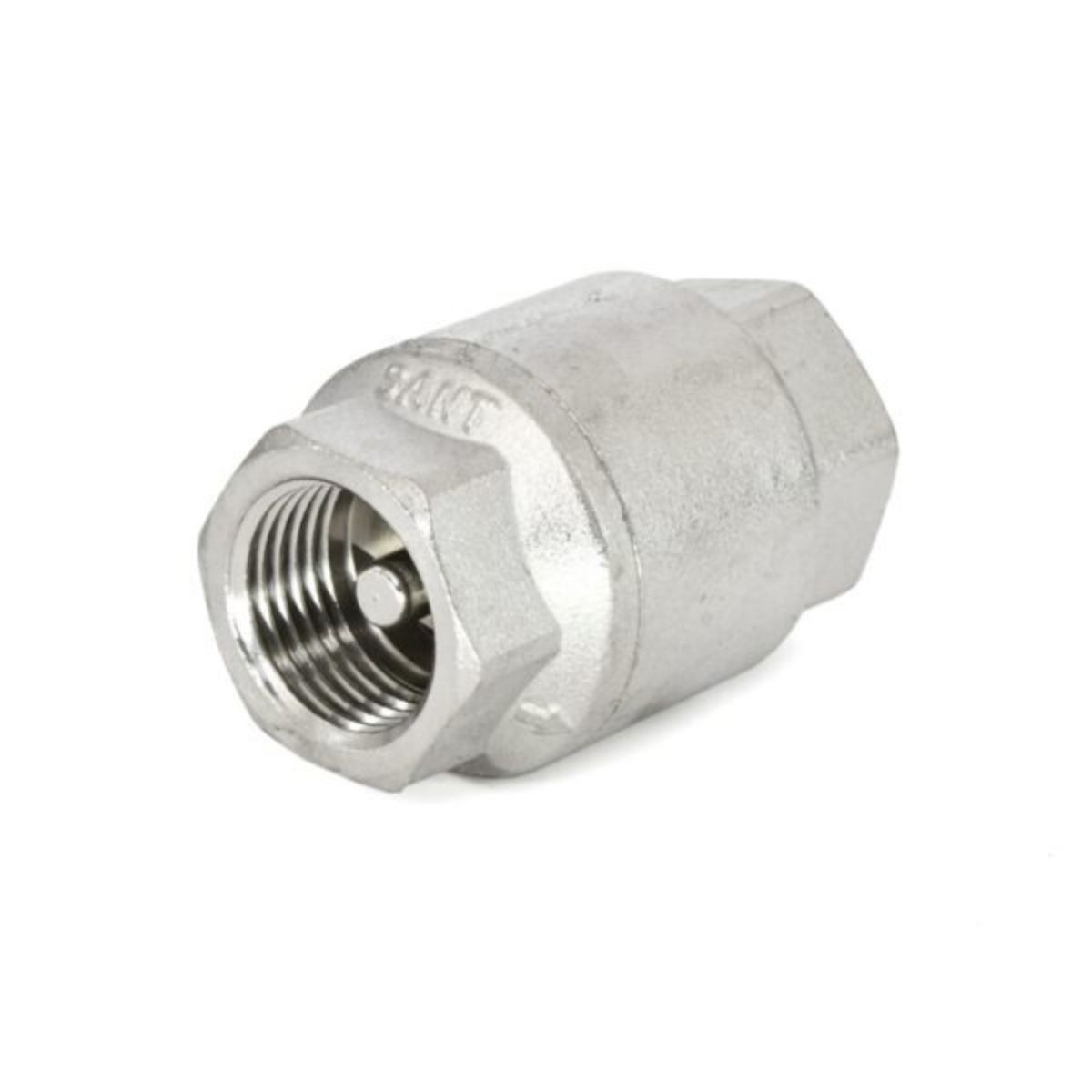

Sant’s BUCV Universal Check Valve is a compact forged brass design (IS:6912 FLB) with a brass disc sealed by an O-ring and a spring-assisted closure for fast, quiet operation – suited to installation in any orientation (horizontal, vertical, or inclined), unlike swing-type checks that need horizontal mounting. Screwed ends with BSP parallel threads. Body test pressure 20 kg/cm2g, seat test 13.65 kg/cm2g hydraulic. Available DN15 to DN50 (1/2″ to 2″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
