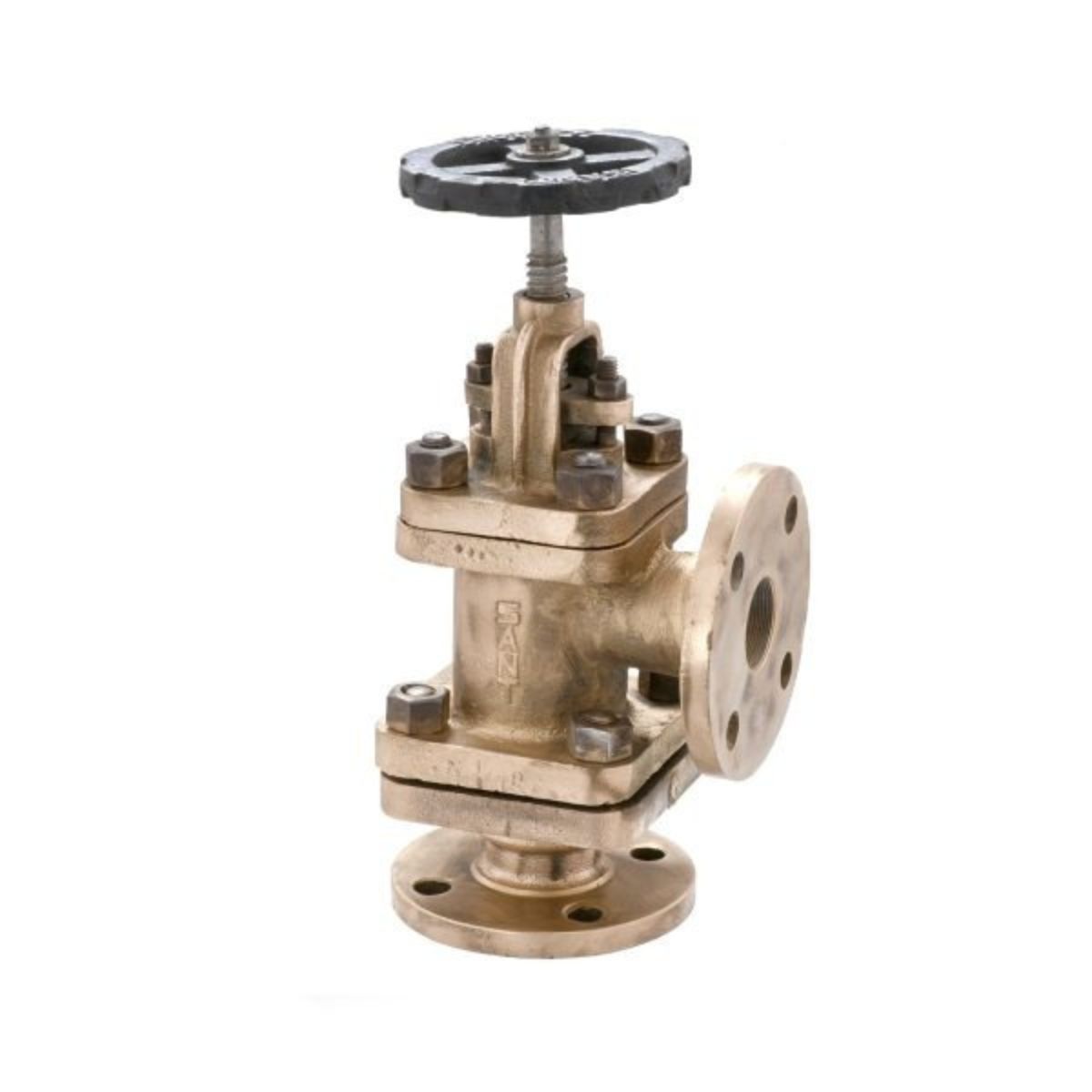

Bronze Accessible Feed Check Valve-IBR-18

Name: Bronze Accessible Feed Check Valve-IBR-18
SKU: 2086
Price: 999.00 INR
Availability: InStock

Sant IBR-18 bronze accessible feed check valve, right-angle, straight/curved inlet, DN20-50, IBR.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s IBR-18 Bronze Accessible Feed Check Valve is a right-angle body design available in straight-inlet or curved-inlet configuration, in bronze (IBR 282(a)(iv) Gr.B) with renewable seat and disc, AISI-410 stainless or Monel trim (Monel option for tougher service), expanded pure flexible graphite gland packing, and undrilled flanged ends to BS 10 Table H F.F. Hydraulic test pressure 500 psig, max working pressure 250 psig (17.58 kg/cm2), rated to 225 degC (435 degF). IBR Form III-C test certificate furnished with every supply. Available DN20 to DN50 (3/4″ to 2″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
