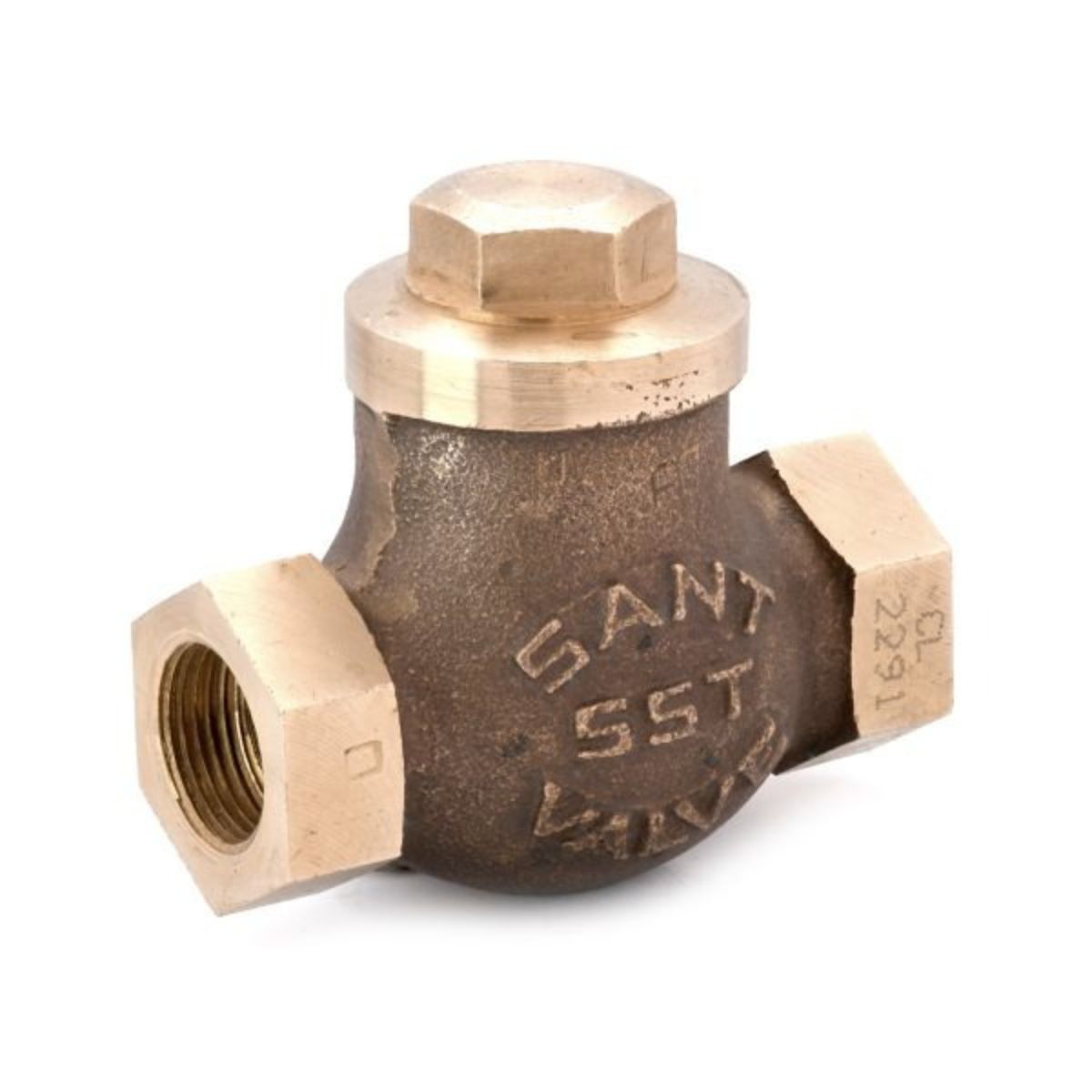

Bronze Horizontal Lift Check Valve-IBR-3B

Name: Bronze Horizontal Lift Check Valve-IBR-3B
SKU: 2150
Price: 999.00 INR
Availability: InStock

Sant IBR-3B bronze horizontal lift check valve, bolted cover, screwed ends, DN40-80, IBR.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s IBR-3B Bronze Horizontal Lift Check Valve upgrades from IBR-3A’s screwed-in cover to a bolted cover – giving easier access for inspection and maintenance without cutting the cover thread – in the same bronze (IBR 282(a)(iv) Gr.B) body/bonnet, renewable seat and disc in AISI-410 stainless, screwed female BSP taper ends to BS 21, with a CAF gasket (IS:2712 Gr.C) and mild steel fasteners for the bolted joint. Body test pressure 500 psig hydraulic, seat test 500 psig hydraulic and 250 psig steam, rated to 225 degC (435 degF). IBR Form III-C test certificate furnished with every supply. Available DN40 to DN80 (1.5″ to 3″) – larger sizes than IBR-3A, where a bolted cover becomes practical. Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
