Bronze Horizontal Lift Check Valve-IBR-3C

Name: Bronze Horizontal Lift Check Valve-IBR-3C
SKU: 2152
Price: 999.00 INR
Availability: InStock

Sant IBR-3C bronze horizontal lift check valve, screwed cover, flanged ends, DN15-50, IBR.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

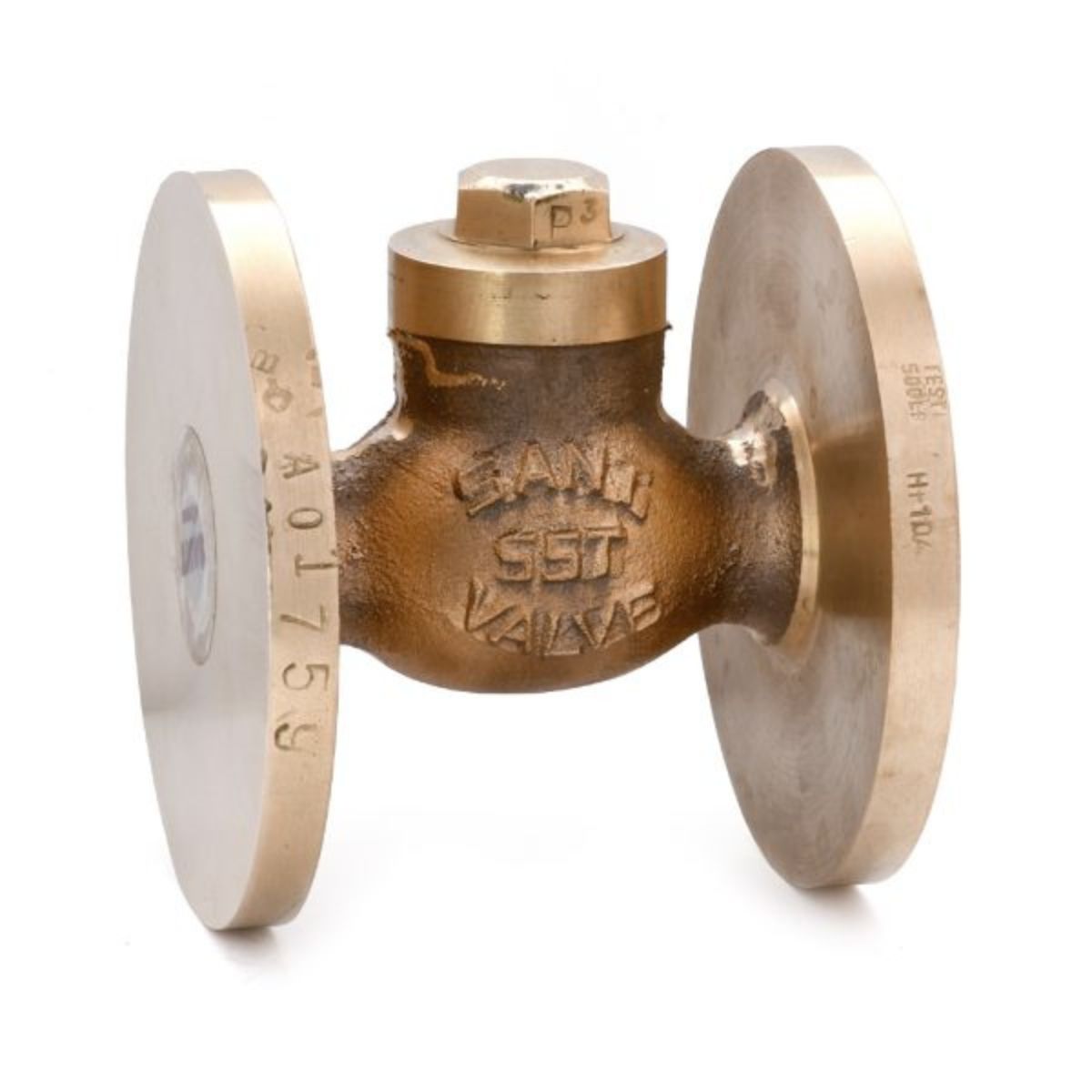

Sant’s IBR-3C Bronze Horizontal Lift Check Valve is the flanged counterpart to IBR-3A – same screwed-in cover design, bronze (IBR 282(a)(iv) Gr.B) body/bonnet, renewable seat and disc in AISI-410 stainless – but with undrilled flanges to BS 10 Table H F.F. instead of screwed ends. Body test pressure 500 psig hydraulic, seat test 500 psig hydraulic and 250 psig steam, rated to 225 degC (435 degF) for water, oil, and steam service. IBR Form III-C test certificate furnished with every supply. Available DN15 to DN50 (1/2″ to 2″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
