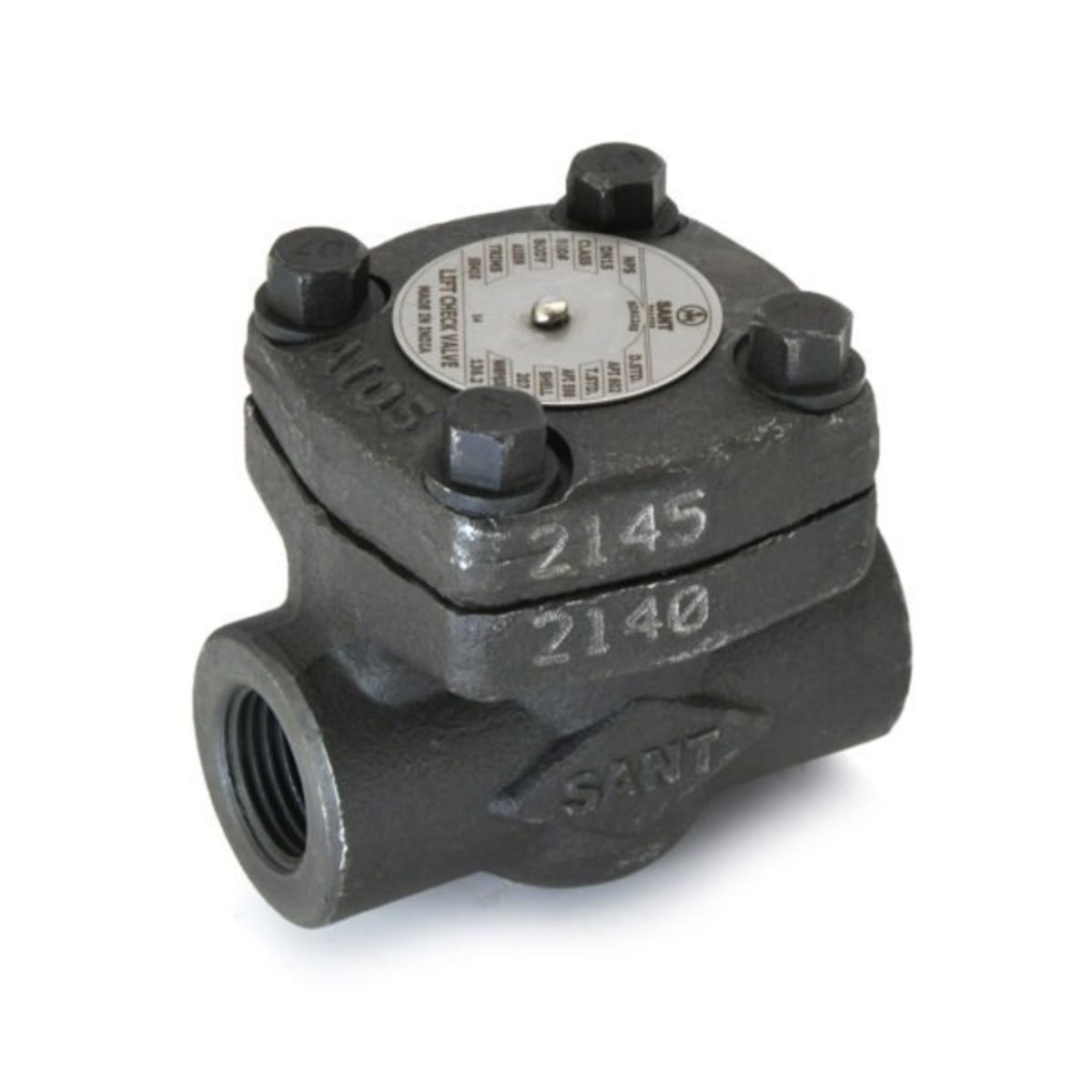

Forged Steel Horizontal Check Valve – FSV-10A

Name: Forged Steel Horizontal Check Valve - FSV-10A
SKU: 2195
Price: 999.00 INR
Availability: InStock

Sant FSV-10A forged steel horizontal check valve, Class 1500, DN15-40, socket-welded, 384 bar test.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s FSV-10A Forged Steel Horizontal Check Valve is a Class 1500 design to BS-5352/API 602 – the highest pressure rating in Sant’s forged steel check valve range – in forged carbon steel (ASTM A105) with a bolted cover, renewable seat and disc, AISI-410 stainless steel trim, and socket-welded ends to ASME B16.11. Body test pressure 384 bar g hydraulic, seat test 281 bar g hydraulic plus 6.9 bar g air. Available DN15 to DN40 (1/2″ to 1.5″) – matches the same Class 1500 rating as the FSV-8A gate valve, for high-pressure steam, oil and gas lines. Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
