Grooved Resilient Swing Check Valve-H84X

Name: Grooved Resilient Swing Check Valve-H84X
SKU: 2202
Price: 999.00 INR
Availability: InStock

Sant H84X grooved resilient swing check valve, PN16, DN50-300, UL/FM approved, spring-assisted.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

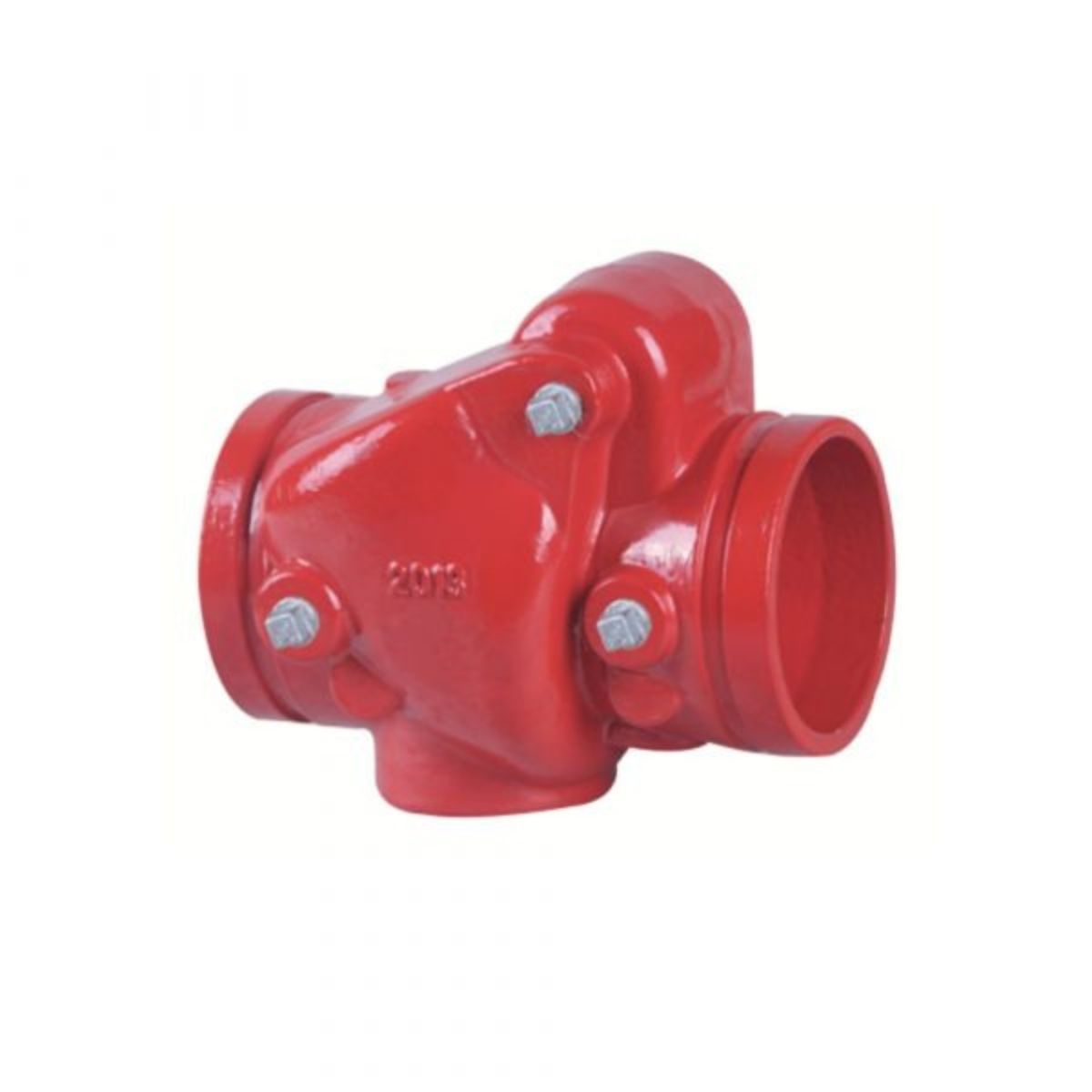

Sant’s H84X Grooved Resilient Swing Check Valve is UL Listed and FM Approved, with a ductile iron (EN-GJS-450-10) body, SS420 hinge pin, SS304 spring for fast closure, and a disc in SS304 (DN50-100) or ductile iron (DN150-300) with an EPDM sealing ring against a pressed-fit ASTM B62 bronze seat ring. Grooved ends to ISO 6182 for quick coupling in fire protection ring mains and sprinkler risers. Rated PN16, 0-100 degC, with fusion-bonded epoxy coating to ANSI/AWWA C550. Available DN50 to DN300 (2″ to 12″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
