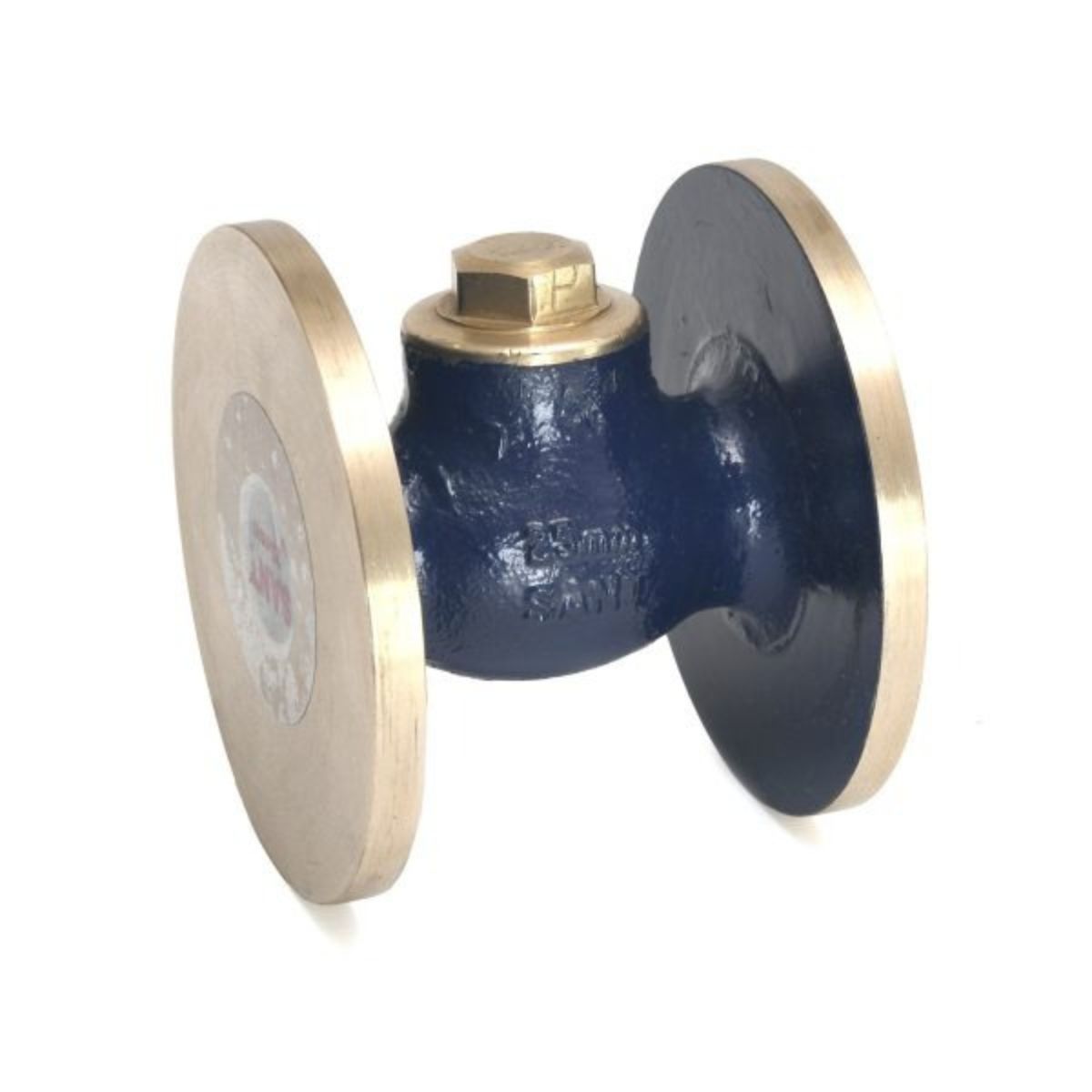

Bronze Horizontal Lift Check Valve-IS-15

Name: Bronze Horizontal Lift Check Valve-IS-15
SKU: 2159
Price: 999.00 INR
Availability: InStock

Sant IS-15 bronze horizontal lift check valve, IS:778 Class-1, ISI marked, DN15-100, flanged.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s IS-15 Bronze Horizontal Lift Check Valve is the flanged counterpart to IS-14 – same Class-1 design to IS-778 (ISI marked), leaded tin bronze (IS:318 Gr.LTB2) body/bonnet/disc, screwed-in cover, integral seat, Cu-alloy trim, and NBR O-ring seal – but with undrilled flanges to IS:778 Class-1 F.F. instead of screwed ends, for flanged pipework. Body test pressure 1.5 MPa, seat test 1.0 MPa hydraulic, max working temperature 45 degC. Available DN15 to DN100 (1/2″ to 4″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
