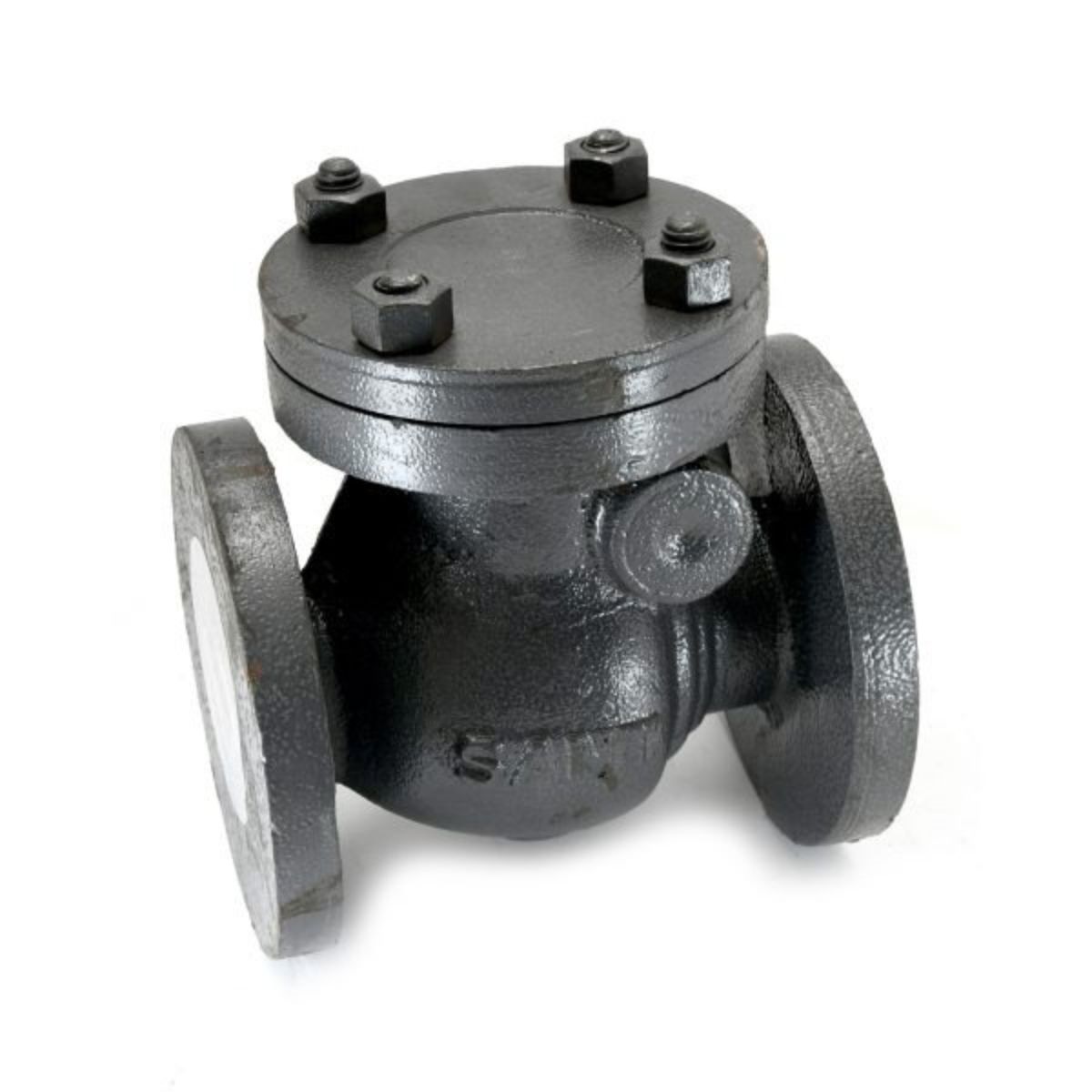

Cast Iron Swing Check Valve-CI-3C

Name: Cast Iron Swing Check Valve-CI-3C
SKU: 2181
Price: 999.00 INR
Availability: InStock

Sant CI-3C cast iron swing check valve, BS:5153, Class-125, DN40-200, IBR certified.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s CI-3C Cast Iron Swing Check Valve is a Class-125 design to BS:5153 – a swing-hinge disc rather than CI-3A’s lift disc, for lower-resistance flow in horizontal runs. Cast iron (IBR 86 to 93 Gr.A) body/bonnet/disc/hinge, bolted cover, renewable seat and disc, AISI-410 stainless trim, and undrilled flanges to BS 10 Table F. Body test pressure 300 psig hydraulic, seat test 200 psig hydraulic, max working pressure 150 psig (10.54 kg/cm2). IBR Form III-C test certificate furnished with every supply. Available DN40 to DN200 (1.5″ to 8″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
