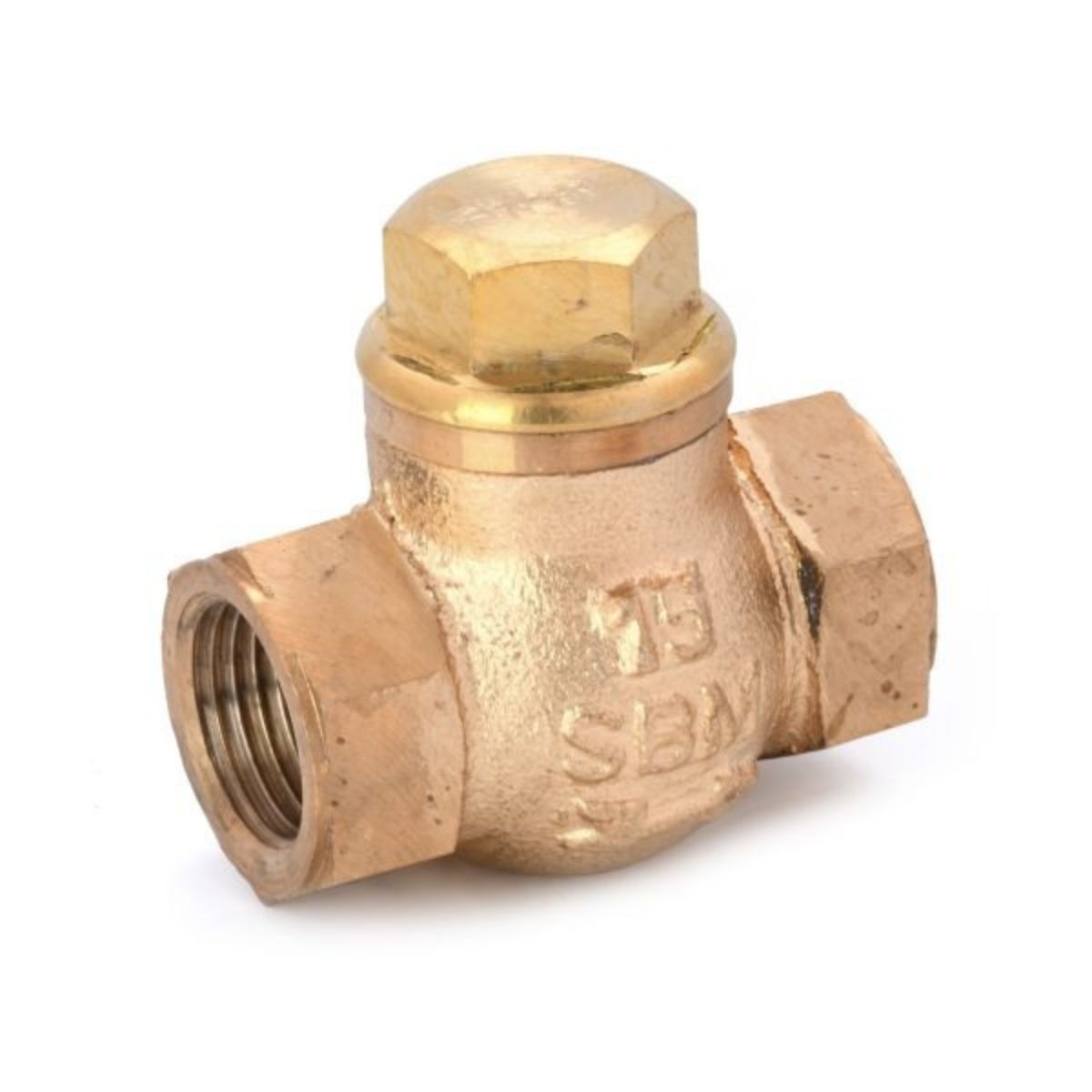

Bronze Horizontal Lift Check Valve-SBM-9

Name: Bronze Horizontal Lift Check Valve-SBM-9
SKU: 2161
Price: 999.00 INR
Availability: InStock

Sant SBM-9 bronze horizontal lift check valve, Standard pattern, DN8-100, screwed BS 21.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s SBM-9 Bronze Horizontal Lift Check Valve (“No.4″) is a Standard pattern with a screwed-in cover, in leaded tin bronze (IS:318 Gr.LTB2) body/cover/disc, integral seat, renewable disc, Cu-alloy trim, and screwed female BSP threads to BS 21. Body test pressure 21.09 kg/cm2g (300 psig) hydraulic, seat test 14.06 kg/cm2g (200 psig) hydraulic. Works test certificate furnished with every supply. Available DN8 to DN100 (1/4″ to 4”) – a wide small-size range for water and oil service. Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
