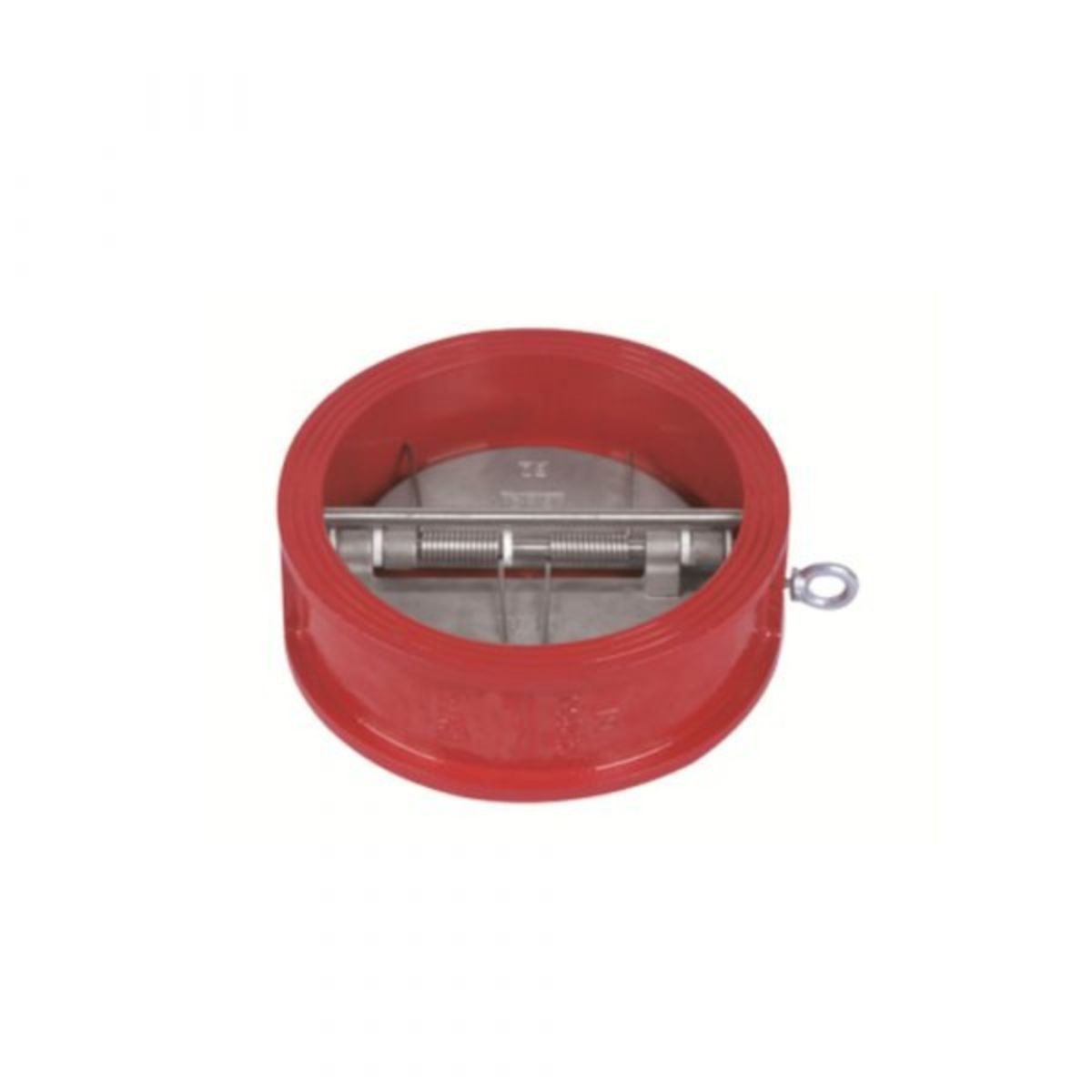

Double Door Wafer Check Valve-DH77X

Name: Double Door Wafer Check Valve-DH77X
SKU: 2189
Price: 999.00 INR
Availability: InStock

Sant DH77X double door wafer check valve, UL listed, PN16, DN50-400, SS316 discs.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s DH77X Double Door Wafer Check Valve is UL Listed, with twin spring-loaded doors instead of a single disc – the double-door design gives a lower opening pressure and faster, quieter closure than single-plate wafer checks. Ductile iron (EN-GJS-450-10) body, SS316 discs, SS420 stem, SS304 spring, EPDM rubber seat, fusion-bonded epoxy coating to ANSI/AWWA C550. Ends suit BS EN 1092 PN10/PN16, AS 2129, and BS 10 Table D/E flange standards – a wider flange-standard compatibility than most of Sant’s wafer range. Rated PN16, 0-100 degC. Available DN50 to DN400 (2″ to 16″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
