Bronze Horizontal Lift Check Valve – SBM-10

Name: Bronze Horizontal Lift Check Valve - SBM-10
SKU: 2146
Price: 999.00 INR
Availability: InStock

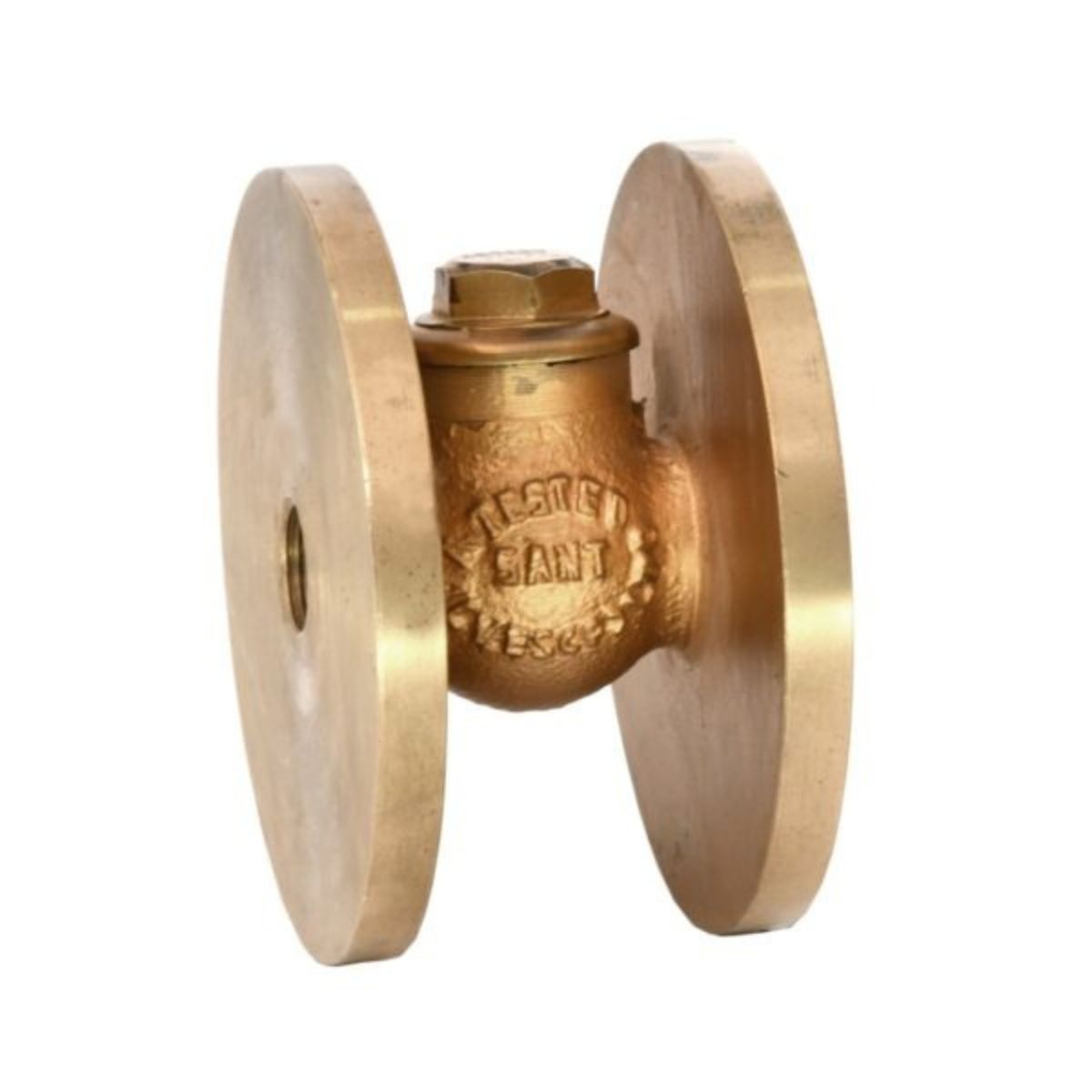

Sant SBM-10 bronze horizontal lift check valve, Standard pattern, DN15-100, flanged BS 10 Table D.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s SBM-10 Bronze Horizontal Lift Check Valve is the flanged counterpart to SBM-9 – same Standard pattern, leaded tin bronze (IS:318 Gr.LTB2) body/cover/disc, screwed-in cover, integral seat, renewable disc, Cu-alloy trim – but with undrilled flanges to BS 10 Table D instead of screwed ends. Body test pressure 21.09 kg/cm2g (300 psig) hydraulic, seat test 14.06 kg/cm2g (200 psig) hydraulic. Works test certificate furnished with every supply. Available DN15 to DN100 (1/2″ to 4″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
