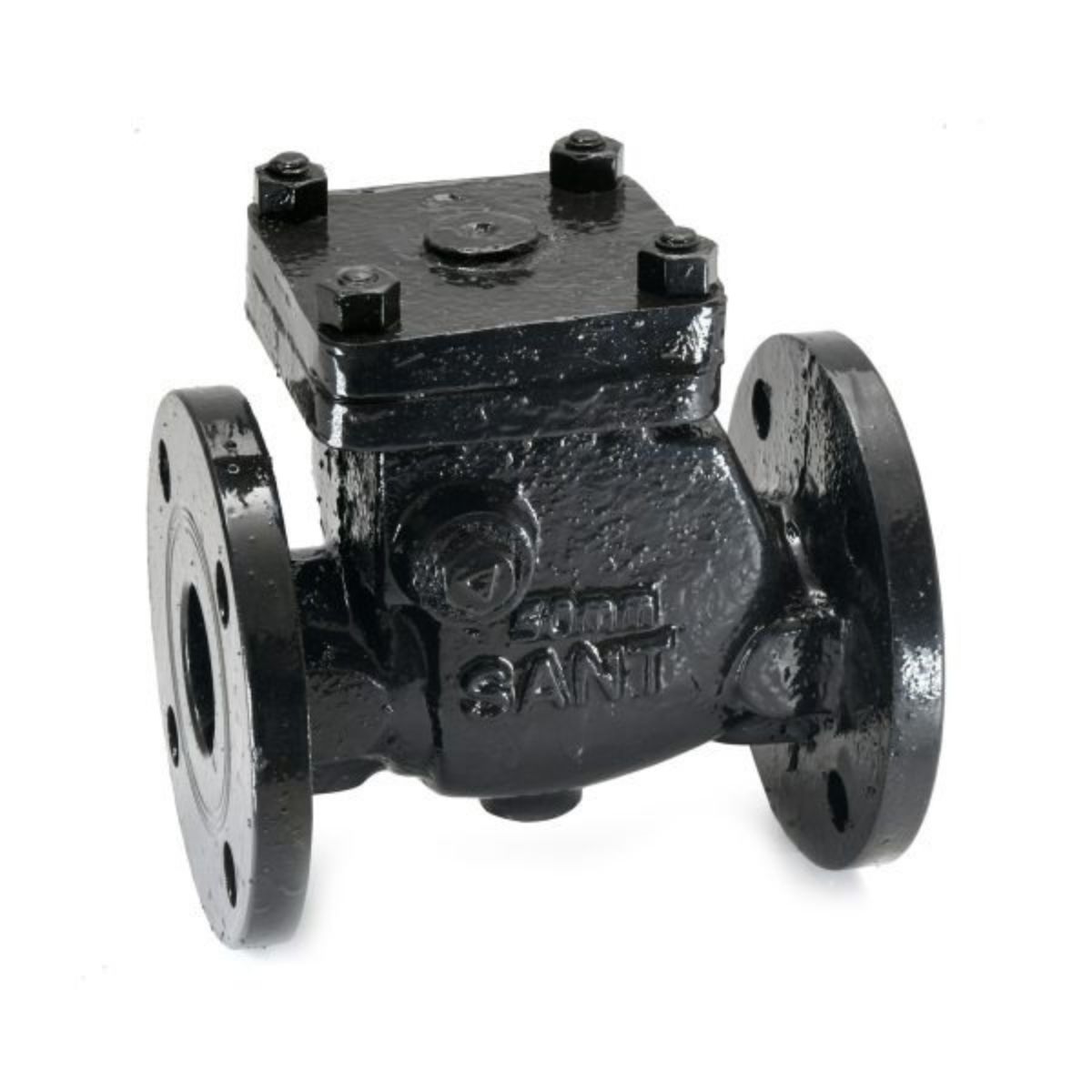

Cast Iron Reflux Valve (Swing Check Type)-CR-31A

Name: Cast Iron Reflux Valve (Swing Check Type)-CR-31A
SKU: 2178
Price: 999.00 INR
Availability: InStock

Sant CR-31A cast iron reflux valve, IS:5312, PN16, DN50-300, flanged, higher pressure than CR-31.

Product successfully added to the Quote List

Categories: Check Valve, Valves Brand: Sant

Description

Sant’s CR-31A Cast Iron Reflux Valve (Swing Check Type) is the higher-pressure counterpart to CR-31 – same straight-pattern non-return valve to IS:5312, cast iron (IS:210 Gr.FG200) body/cover/hinge/disc, bolted cover, renewable disc with rubber facing (IS:638 Type B), leaded tin bronze body seat ring, AISI-410 stainless hinge pin, and flanged ends to IS:1538 – rated PN16 (vs CR-31’s PN10). Body test pressure 2.4 MPa hydraulic, seat test 1.6 MPa hydraulic. Available DN50 to DN300 (2″ to 12″). Jaideo Automation supplies Sant valves across India – contact us with your size for a quotation.
